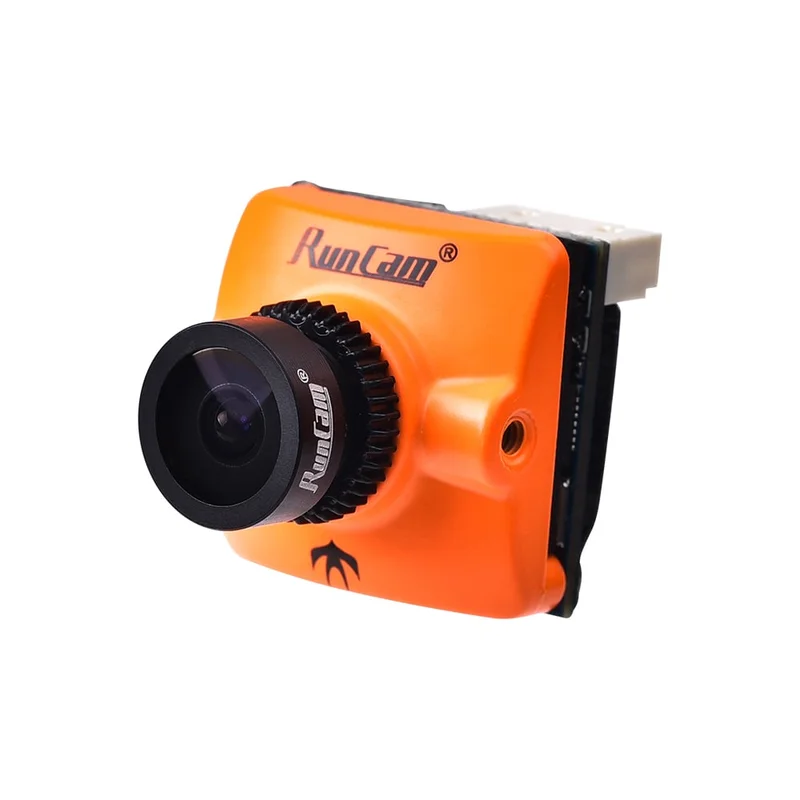

RunCam Micro Swift 3 V2 160 Degree FOV
An updated version 2 of the great Micro Micro Swift 3 FPV Camera by Runcam.
Check out all of our Runcam products, and all of our Analog Cameras!
UART Control works with Flight Controllers:BetaFlight 3.3 or above / ButterFlight 3.4 or above / CleanFlight 2.2 or above / Kiss Flight RC36 or above
Specifications
| Model | RunCam Micro Swift 3 |
| Image Sensor | 1/3″ SONY Super HAD II CCD |
| Horizontal Resolution | 600TVL |
| Lens | FOV 160° 2.1mm |
| Signal System | PAL / NTSC |
| Integrated OSD | Yes |
| One Touch Scene Setting | Personal / Lightrax / Outdoor / Indoor / Cloudy / Twilight |
| S/N Ratio | >60dB (AGC OFF) |
| Electronic Shutter Speed | PAL: 1/50~100,000; NTSC: 1/60~100,000 |
| Auto Gain Control (AGC) | Yes |
| Min. Illumination | [email protected] |
| WDR | D-WDR |
| DNR | 2DNR |
| Day/Night | Color/Auto/B&W |
| Menu Control | Joystick Control / UART Control Switchable |
| Power | DC 5-36V |
| Current | 60mA@12V / 120mA@5V |
| Net Weight | 6g(M8) |
| Dimensions | 19mm*19mm*18mm |
