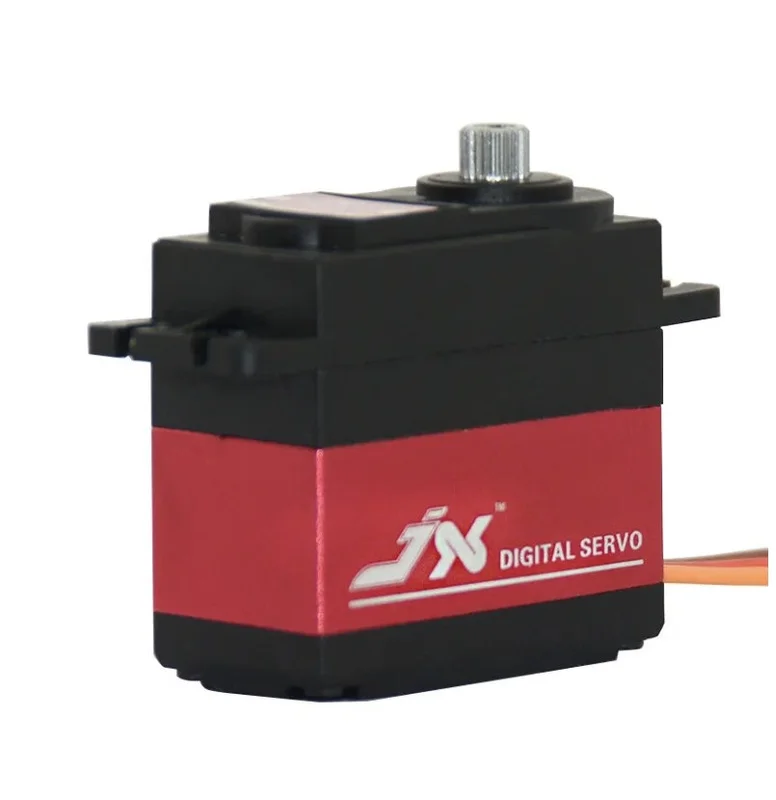

JX Servo PDI-6115MG – 15kg 6V 0.126Sec High Speed Standard Digital Coreless Servo For RC Car Boat Racing Drone

Description

JX Servo PDI-6115MG 15kg 6V 0.126Sec High Speed Standard Digital Coreless Servo For RC Car Boat Racing Drone

Features:
— High performance digital coreless standard servo
— High-precision Taiwan-made aluminium gears with hard anodizing
— CNC aluminium middle Shell
— Dual ball bearings

Specification:
Dead band: 1μs
Working frequency: 1520μs / 330hz
Motor: coreless motor
Operating Speed (4.8V): 0.147sec/60°
Operating Speed (6V): 0.126sec/60°
Stall Torque (4.8V): 14.21 kg.cm (197.33oz/in)
Stall Torque 6V): 16.83kg.cm (233.72oz/in)
Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
Weight: 61 g (2.15oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Tooth Count: 25

Package Included:
1 x Servo
1 x Bag of Accessories
