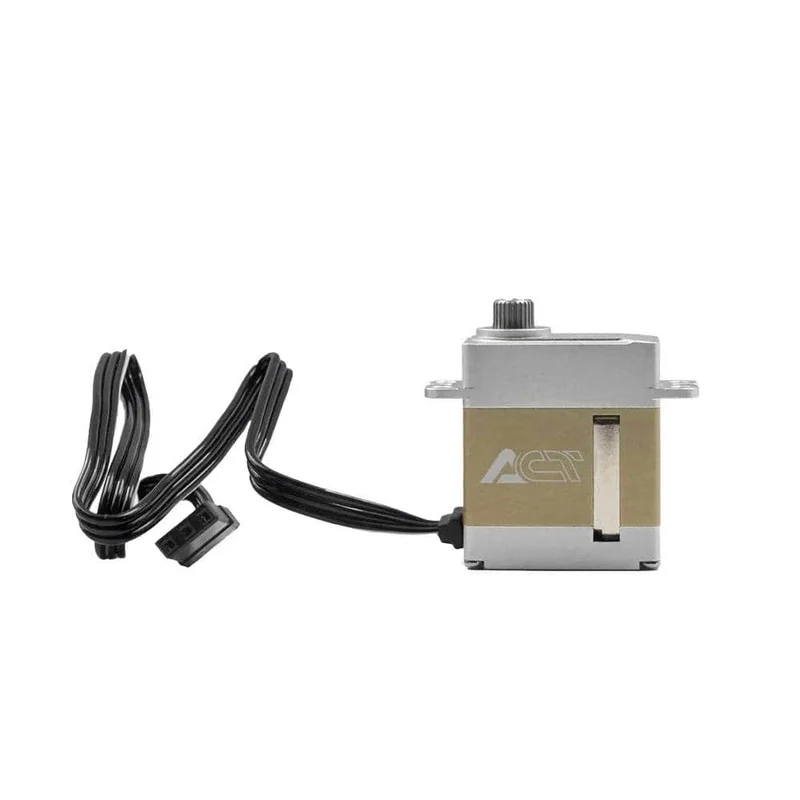

FrSky Act M5213H Servo

Description

The FrSky Act 5200 series coreless servos utilize a fully CNC-machined aluminum protective case and durable metal gears. These high-voltage servos are capable of supporting up to 8.4V and offer both high speed and torque performance.

Check out all our Servos & Accessories and our FrSky products!

Features

• High durability with metal gear and aluminum CNC-machined protective case
• 8.4V high voltage capable operation with high speed and torque performance
• Built-in dual precision ball bearings with potentiometer sensor

Specifications

• Horn Spline: Φ5 25T
• Stall Current: [email protected] / [email protected] / [email protected]
• Operating Voltage Range: 5.0~8.4V
• Reflash Rate: 1520us/333Hz
• Torque:
  • @6.0V: 7.4 kgf.cm 103 Oz-in
  • @7.4V: 9.5 kgf.cm 132 Oz-in
  • @8.4V: 10.5 kgf.cm 146 Oz-in
• Speed:
  • @6.0V: 0.11 sec/60°
  • @7.4V: 0.08 sec/60°
  • @8.4V: 0.07 sec/60°
• Dimensions: 23x12x27.5mm
• Weight: 21g

Includes

• 1x FrSky Act M5213H Servo
