Description

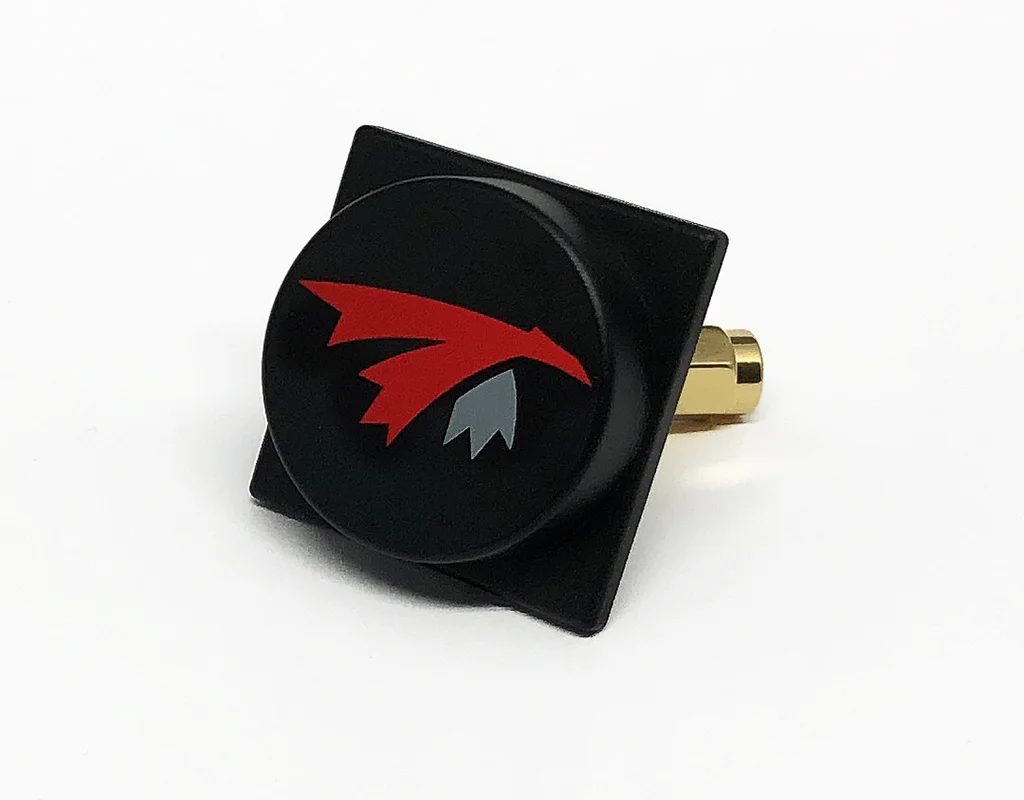

The TrueRC X-Air 5.8 Crosshair Antenna MK II RHCP is a cutting-edge redesign of the original X-Air 5.8, now featuring aerospace-grade PCB materials and advanced engineering for superior performance. With a compact form factor—nearly 1/4 the size of the original—this antenna maintains high gain (9.5-10.5 dBic) and wide beam coverage (120°), making it ideal for long-range FPV applications.
Designed for minimal aiming adjustments, the X-Air 5.8 MK II ensures strong signal reception, even at extreme distances. Its high axial ratio improves signal clarity, reducing interference for clearer video transmission. Whether for FPV drones, long-range video links, or ground station setups, this LHCP directional antenna delivers exceptional results. The SMA male connector allows compatibility with various FPV receivers and systems.
Key Features:
- Compact design – 1/4 the footprint of the original X-Air
- 9.5-10.5 dBic gain for superior long-range performance
- 120° beam-width with excellent signal coverage
- LHCP polarization for optimal FPV signal clarity
- High axial ratio for minimized interference
- Durable aerospace-grade PCB material
- SMA male connector for wide compatibility
Specifications:
- Frequency Bandwidth: 5.1GHz – 6.7GHz
- Gain: 9.5-10.5 dBic
- Polarization: LHCP
- Beam-width (H & V)*: 120°
- Beam-width @-3dB (H & V)**: 68°
- Connector: SMA
- Dimensions: 32mm x 32mm x 16mm
*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.
