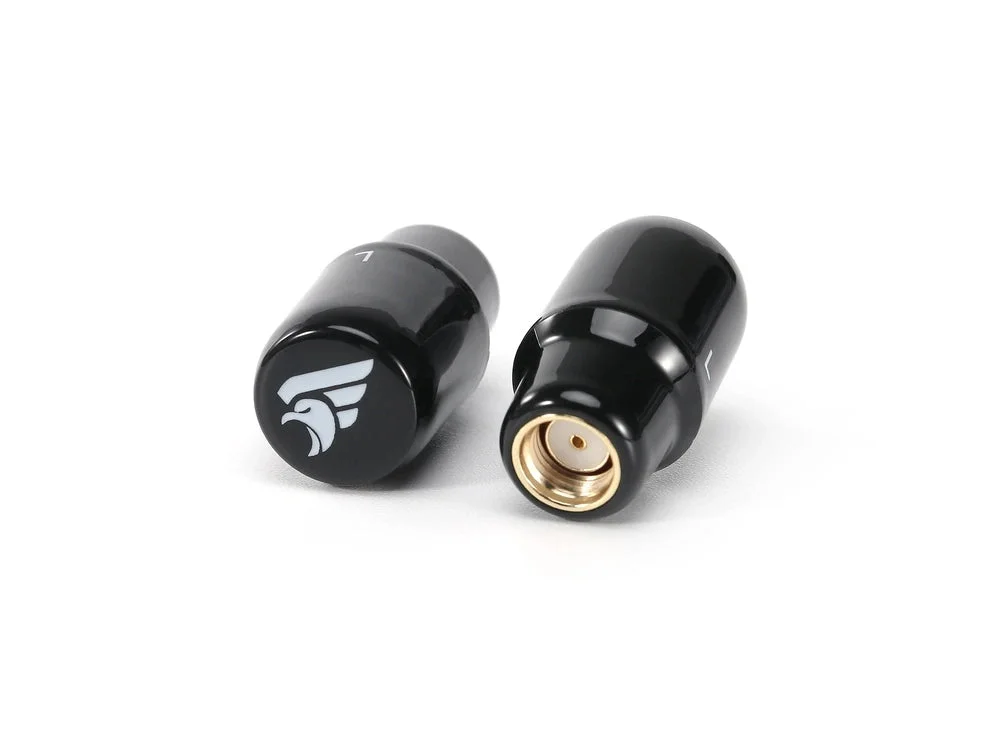

TrueRC Core 5.8GHz Antennas

Description

The CORE 5.8 is a distillation of all those years working with drone enthusiasts and professionals alike. This omnidirectional antenna starts with a refined RF design that provides excellent consistency within units and various cable configurations. We then added a very durable outer shell that protects the antenna from inevitable crashes. Finally, it is available in multiple connectors and styles.

Features:

• Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
• Clear indication of polarization direction
• Smooth radiation pattern with even gain in all directions
• Excellent axial ratio and efficiency
• Flexible coax cable option that deflects impacts
• Exclusive knurled True-SMA for easy tightening

Specifications:

• Gain: 1.9dBic
• Polarization: RHCP
• Cross-Polar Rejection: -10 to -20dB
• Bandwidth: 5.5GHz-6.1GHz
• Radiation Efficiency: 98%
• SWR: <=1.2:1
• Weight: Vary with connector/cable option
• Dimensions(head): 16.9mm dia. x 13.1mm height.
• Length: Vary with cable option

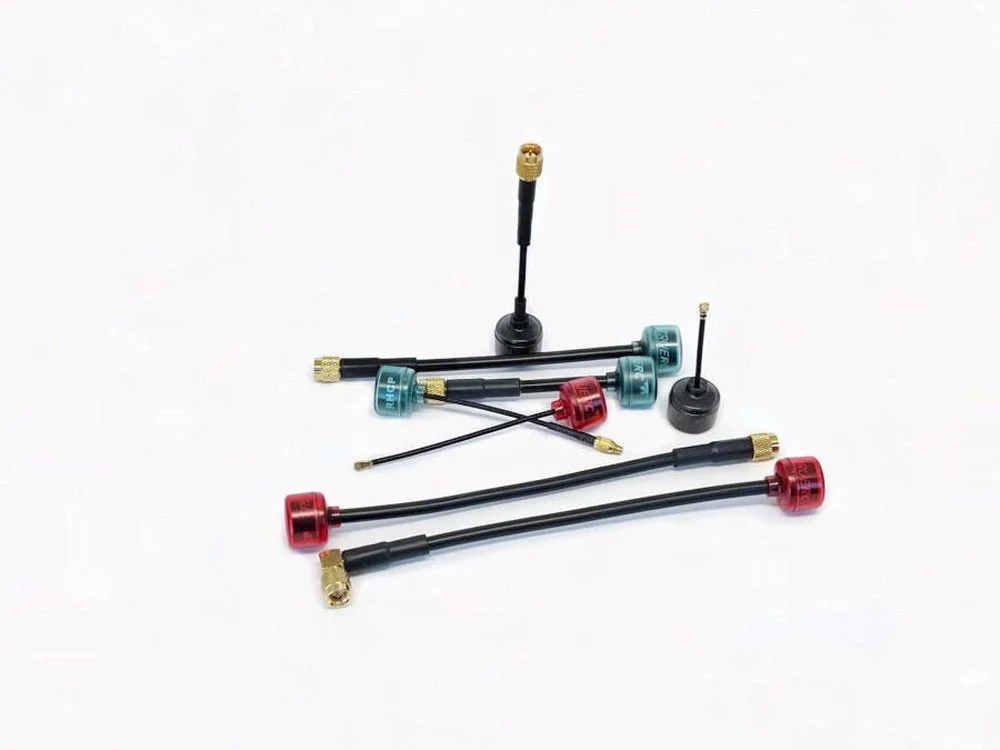

• Cable: TrueRC RG316S/RG402/RG178 coax
• Connector: Reinforced True-SMA/90 male, U.FL, MMCX/90

Includes:
1x TrueRC Core 5.8GHz Antenna
