Description

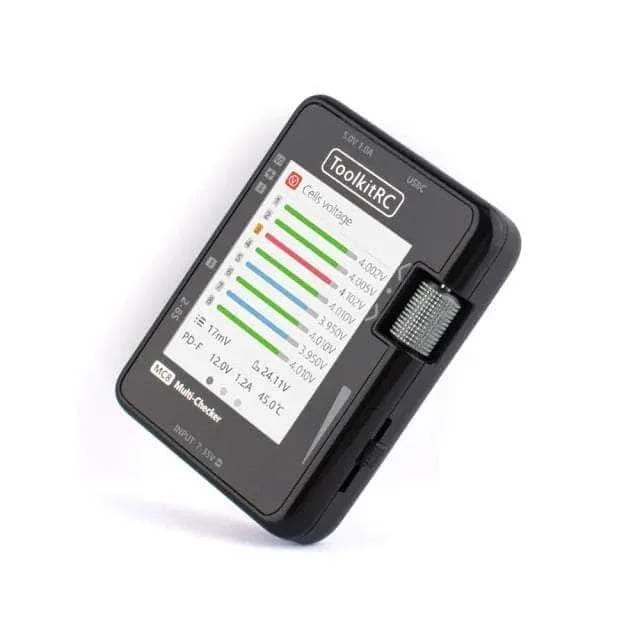

The latest from Toolkit is a feature packed multi purpose cell checker with a big, bright, easy to read display. Not only can you check cell voltages and balance your packs, you can also monitor the PWM/PPM/SBUS output of receivers, generate PWM output to test servos and ESCS, and use your LiPos for device charging (up to 20W PD)! Check the video below to see what it can do!
Check out all our Battery Chargers and Accessories and our ToolkitRC selection!
Specifications
- LCD: 2″ IPS 320×240
- Dimensions: 68x50x15mm
- Weight: 50g
Checker
- Main Input port: XT60 7.0-35.0V
- Balance input: 0.5V-5.0V Lixx 2-8S
- Signal port input: <6.0V
- Balance current: MAX 60mA @2-8S
- Balance accuracy: <0.005V @ 4.2V
- USB-A output: [email protected] firmware upgrade
- USB-C output: 5.0V-12.0V @MAX 20W
- USB-C protocol: PD3.0 QC3.0 AFC SCP FCP
Measurer
- PWM: 500-2500us @20-400Hz
- PPM: 880-2200us*8CH @20-50Hz
- SBUS: 880-2200us*16CH @20-100Hz
Output
- PWM: 1000-2000us @20-1000Hz
- PPM: 880-2200us*8CH @50Hz
- SBUS: 880-2200us*16CH @74Hz
Includes
- 1x Toolkit RC MC 8 Multi-Functional 2-8S Battery Checker
