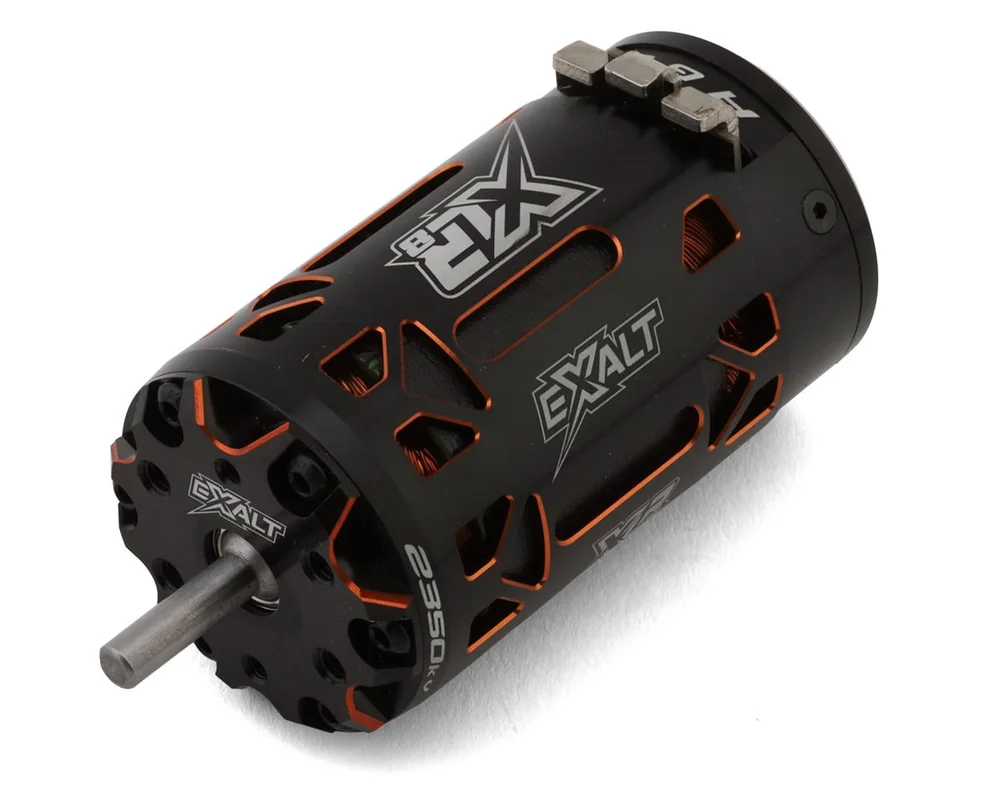

Team Exalt XLR8 1/8 Sensored Brushless Long Can Truggy Motor (2350kV)

Description

Motor Overview:

Team Exalt XLR8 1/8 Sensored Brushless Long Can Truggy Motor. Designed from the ground up to feed the demand for a fast long 74mm can size motors that don’t lack smoothness, speed, torque or durability in 1/8 truggy racing! This XLR8 motor features high-strength and heat resistant staggered magnet placed rotor offering a low drag effect with incredible torque and power, high purity copper windings with advanced hall sensing system design separating the rotor magnet from the magnet pickup and a rebuildable design with replaceable sensor board!

To ensure peak performance even in most demanding conditions and that cooling would not be issue, Team Exalt designed the case with a 2mm thick aluminum wall and implemented ventilation holes that let the air in and keep the debris out for the ultimate heat dissipation and motor protection!

Features:

• Staggered magnet placed rotor offering a low drag effect with incredible torque and power
• Adjustable timing from 0-40 degrees (CCW/CW)
• Sensored and Sensorless compatible
• Rebuildable design with replaceable sensor board
• High purity copper windings
• Top-quality alloy steel output shaft
• High-strength and heat resistant magnet formula
• Advanced hall sensing system design separating the rotor magnet from the magnet pickup
• Roar Approved!

Specifications:

• Type: Sensored Brushless
• kV Rating: 2350kV
• Input Voltage: 2-4S (7.4-14.8V) LiPo
• Poles: 4
• Timing: Adjustable 0-40 degrees (CCW/CW)
• Diameter: 41.8mm (1.645in)
• Length: 74mm 2.91in
• Shaft Diameter: 5mm (0.19in)
• Shaft Length: 17.7mm (0.696in)
• Weight: 386g (13.6oz)
• Application: 1/8 Truggy

Includes:

• (1) XLR8 1/8 Sensored Brushless Long Can Truggy Motor (2350kV)
• (1) Sensor Wire
