Description
What could be better than the best Tracer receiver and an improved Unify Pro32 video transmitter making sweet love? Exactly! Nothing. nothing at all.
Introducing the TBS Tracer Sixty9. a VTx and receiver AIO board sporting a race-friendly. long-range capable video transmitter combined with the same on the TBS Tracer side. Mounting holes are 20×20. but we do incldue adapters for your 30×30 stacks. and a plastic case for mounting the unit to your frame – without any stacking necessity.
Outputs 2x CRSF + 2x PWM (or 6x PWM) directly to your FC. The main JST-SH connector connects to your flight controller and video camera (or also FC for those that like the FC-OSD).
FEATURES:
- Integrated video transmitter control with long range and (team-)race functions
- Dedicated low-noise power supply for receiver and video transmitter
- Sleek 20×20 mounting form factor
- Plug&play connection and solder pads connectivity

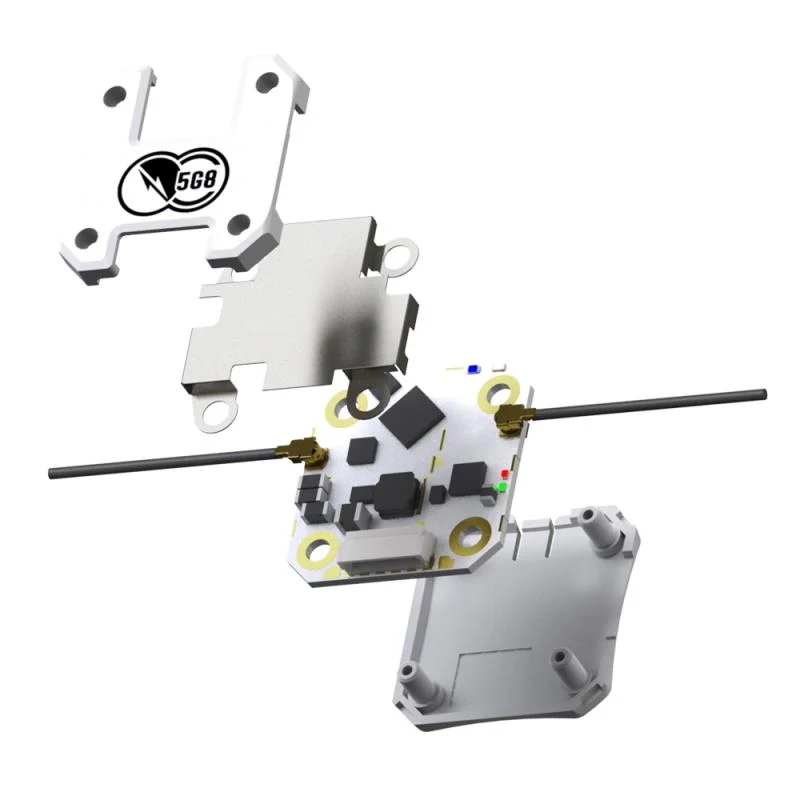

- 3 different mounting flavors. RF tin shields. and other accessories included
- High power analog adjustable video transmitter (up to 1W with perfect cooling)
- 5V regulator bulti-in. takes up to 6S
SPECIFICATIONS
| CRSF | V3 ready |
| Weight | 4.1g (board only) |
| Antenna ports | 1x video transmitter. 1x R/C receiver |
| Size | 24mm x 24mm |
| Input voltage | 6V – 25V (2-6S) |
| Requires | Firmware V4.62 and above |
| VTX Table | VTX Table for Betaflight |
INCLUDES
- 1x TBS Tracer Sixty9
- 1x TBS Tracer Immortal-T antenna
- 1x u.FL to SMA mount (for VTx)
- 1x 30×30 heatsink / case
- 1x 20×20 heatsink / case
- 1x optional tin-shield (for added low-noise tolerance)
- 1x JST-SH x 9 connector
DOWNLOADS
- TBS Tracer – RED Declaration of Conformity
- TBS Tracer Manual
