Description

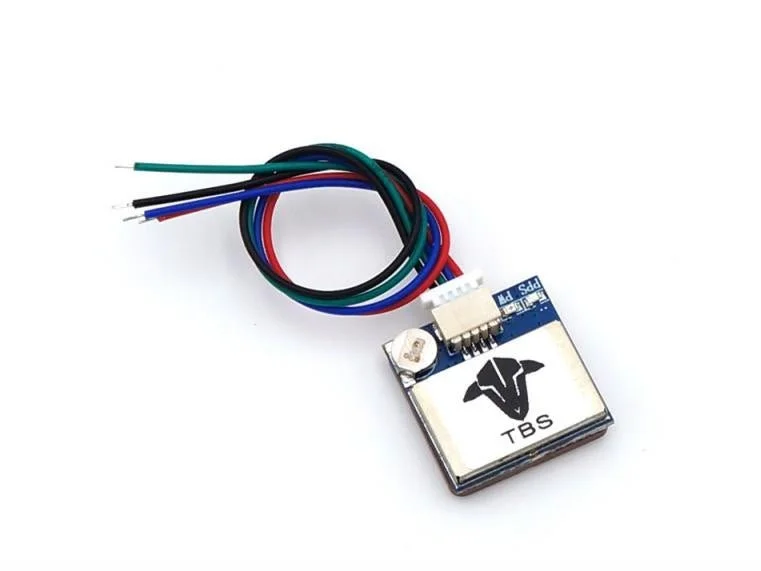

The perfect small-sized GPS for your needs. Quick to lock on, fantastic performance and sensitivity.

Specifications:

Chipset – G7020-KT
Frequency – L1, 1575.42MHz
Baud Rate – 4800,9600,19200,38400,57600,115200bps
Channel – 56
Sensitivity – (Tracking: -162dBm) | (Capture: -160dBm) | (Cold Start – 148dBm)
Cold start – Average 29 seconds
Warm start – Average 28 seconds
Hot start – Average 1 second
Accuracy – (HorizontalPosition:Autonomous<2.5m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns)
Maximum height – 50000m
Maximum speed – 500 m/s
Maximum acceleration – ≦ 4G
Refresh Rate – 1-10 Hz
Size – 18 x 18 x 6mm
Weight – 4.3g
Input Voltage – 3.3V-5V
