TBS Lucid Pro 60A AM32 Stack

Description

The TBS Lucid flight stack is the latest in product engineering at TBS. Built for racing and freestyle applications and developed to cater to the needs of both seasoned pilots and enthusiastic newcomers.

At the heart of the TBS Lucid flight stack is the latest generation AT32 microprocessors, and the innovative bracket mounting solution to achieve compatibility for both 30.5 x 30.5mm as well as 20 x 20mm mounting patterns. Through some clever engineering, it is perhaps the only stack that is compatible with quads of all kinds and sizes: anything between 3” and 8” propellers, 3S – 6S, with the most common mounting patterns, compatible with any digital or analog video system.

For the professional pilot, a MPU6000 variant is available (those who know, will know), while the ICM-42688P based version offers a state-of-the-art gyro solution at a better price.

Specifications:

LUCID PRO FLIGHT CONTROLLER

• MCU:  AT32F435RMT7, 288MHz
• Gyro:  MPU-6000
• Motors:  4 Motors, with telemetry and current sensor
• BEC:  9V, 2.5A 5V 2A
• OSD:  AT7456E
• Blackbox:  8M
• UARTs:  6 (UART1/UART3/UART4/UART5/UART7/UART8)
• Input:  3S-6S
• Dimensions:  31mm*29mm
• Mounting:  20mm*20mm
• Weight:  4.51g

LUCID 6S 60A 4-IN-1 ESC

• ESC Software:  AlkaMotors342 (AM32)
• ESC Target:  tbslu6s4in1
• Rated Current:  60A x 4, 300 seconds
• Peak Current:  70A x 4, 60 seconds
• Propellers:  Up to 9″, over 7″ requires good airflow
• Input:  3-6S LiPo
• Protocol:  Bi-directional DShot 300/600, KISS ESC Telemetry
• ESC Current Port:  YES
• BEC:  No
• Dimensions:  34mm*44mm
• Mounting:  Gorilla-mount (39.5 x 16mm) or brackets for 20×20 mm, 30.5×30.5mm
• Weight:  13.81g, 19g Including Brackets

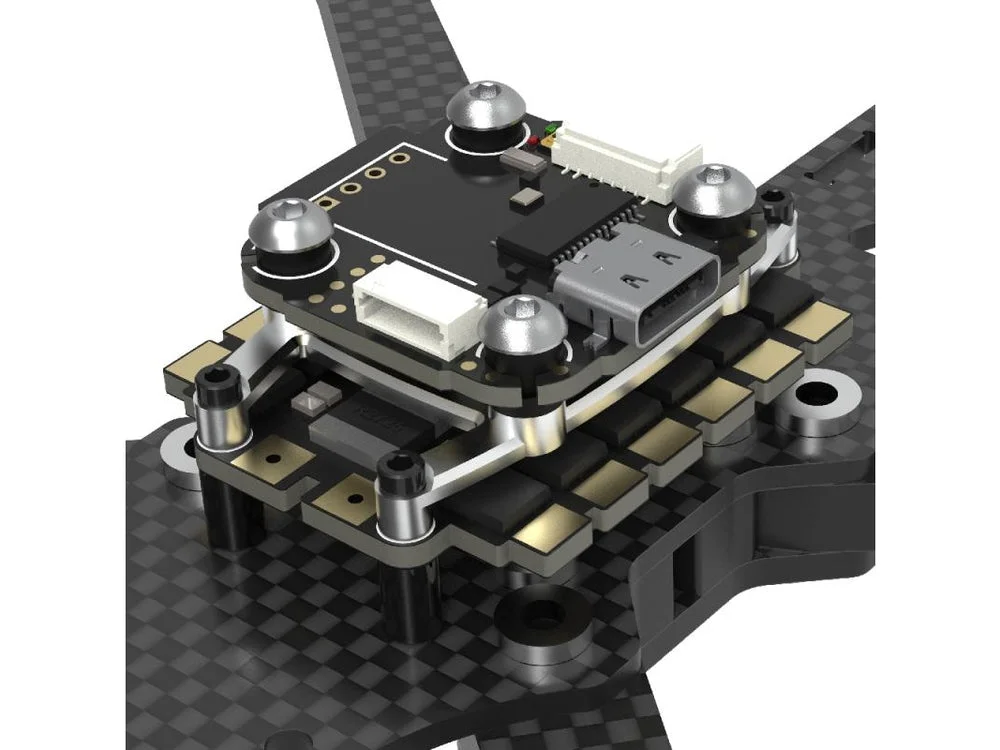

Gorilla Mount

Superior power delivery is additionally achieved by the innovative mounting brackets which avoid the complication of having to run mounting bolts through the middle of the ESC. We call this the “Gorilla” mount.

Frame developers are encouraged to integrate the gorilla mounting pattern into their new and upcoming frames. Backwards compatibility is provided through mounting brackets.

TBS Lucid Series

• TBS Lucid Pro 60A AM32 Stack
• TBS Lucid Freestyle 60A AM32 Stack
• TBS Lucid Pro Flight Controller
• TBS Lucid Freestyle Flight Controller
• TBS Lucid 6S 60A AM32 4-In-1 ESC
• TBS Gorilla 20×20 Adapter
• TBS Gorilla 30×30 Adapter

Includes:
1x TBS Lucid Pro Flight Controller
1x TBS Lucid 6S 60A AM32 4-In-1 ESC

Downloads:

• Gorilla mounting pattern
• Frame developer pack for Gorilla mounting pattern
• AM32 Online Configurator
• AM32 Firmware
• TBS Lucid Manual
