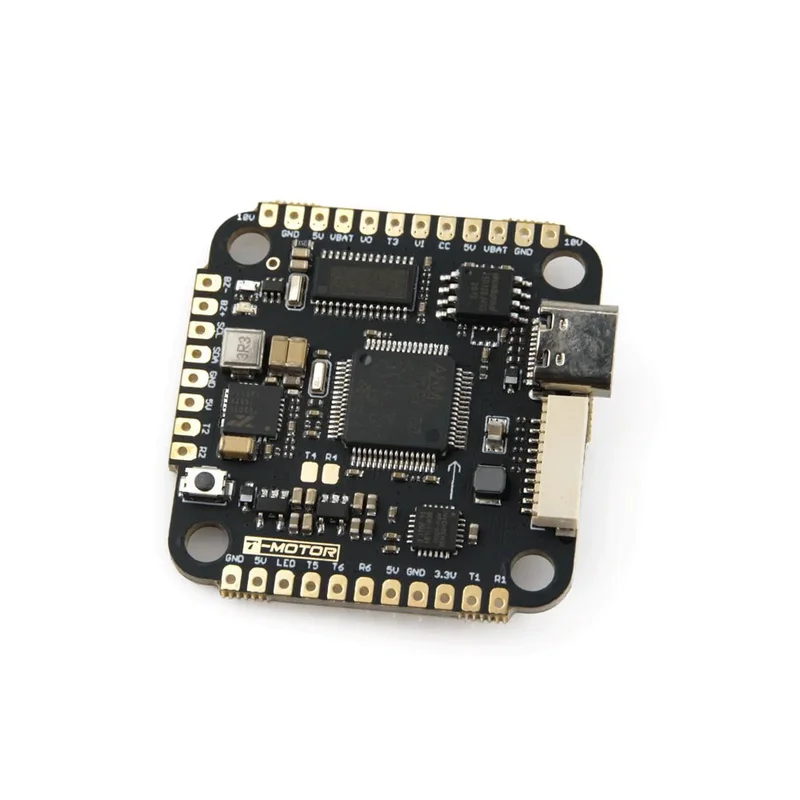

T-Motor Pacer F7 Single Sided 3-6S 30×30 Flight Controller

Description

T-Motor’s Pacer F7 USB-C Flight Controller is designed to work seamlessly with the F45A 2.0, F55A Pro II, V45A, P50A, P60A 4-in-1 ESC. Come with an onboard 5V 3A BEC, 6 UARTS, built-in OSD, and built-in LC filter, among other cool features!

Check out all our 30×30 Flight Controllers, and all our T-Motor products!

Features:

• Enlarged solder pads on edge, easy connection
• Build-in OSD chip supports BF OSD function
• 6x Hardware UARTs
• 3-6S lipo direct input
• Onboard 5V 3A BEC
• Support camera control function
• Build-in 128Mbit/16MByte flash for black-box function
• Built-in LC filter, filter power noise, and supply clear picture
• Direct plug with F45A 2.0, F55A Pro II, V45A, P50A/P60A 4in1 ESC (T-Motor 4in1 ESC)
• 5x 10V Power pad (2x Top and 3x Bottom), to power Video devices(only available when T-Motor 4-in-1 ESC w/ 10V BEC is connected)

Specifications

• Input Voltage: 3-6S
• MCU: STM32F7
• Gyro: BMI270
• Memory: 8M
• BEC: 5V/2A
• Mounting Holes: 30x30mm M3
• Weight: 5.3g

Includes

• 1x T-Motor Pacer F7 Single Sided 30×30 Flight Controller
