Description

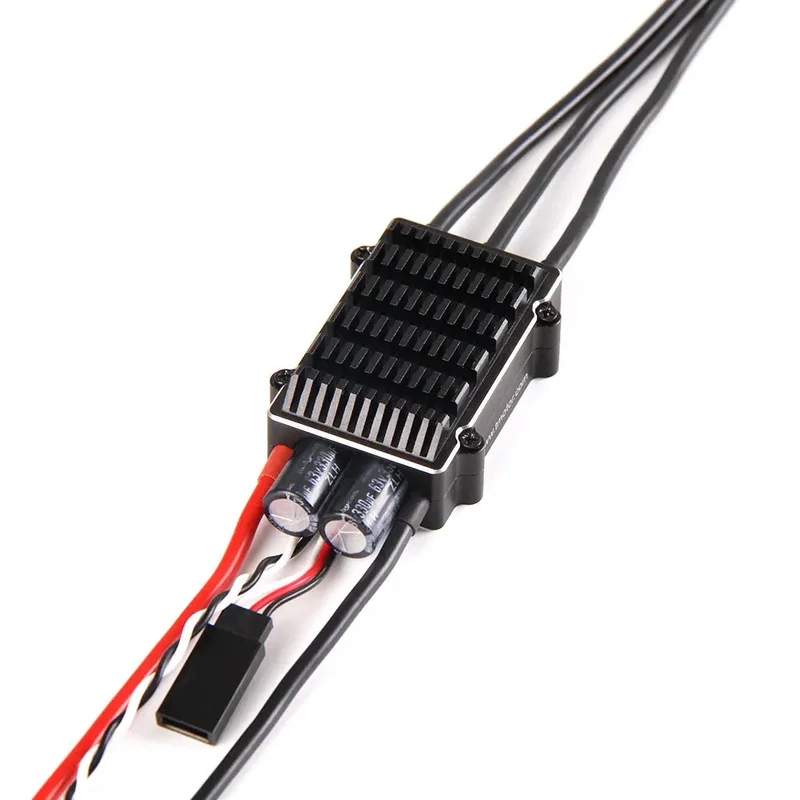

T-motor FLAME 60A HV 12S ESC SPECIFICATIONS

Brand Name: T-MOTOR

Origin: Mainland China

Material: EVA

Recommend Age: 14+y

RC Parts & Accs: Speed Controllers

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Remote Control Peripherals/Devices: ESC

Model Number: FLAME 60A 6-12S 600HZ NO BEC

Prominent Safety The remarkable protection functions prolong the service life and enhances safety . Start-up Protection ver-load Protection Motor Lock-up Temperature

ESC user manual: high power system for RC model can be very dangerous . manual assumes no responsibility for personal injury. property damage or consequential losses resulting from the product .

This ESC is specifically designed for multi-rotors and features three key protection modes: (1) start-up protection. which shuts down the motor after two seconds if it fails to start normally; (2) throttle signal loss protection. which cuts off output immediately if the signal is lost for more than 0.25 second; and (3) motor lock-up detection. which attempts to restart the motor three times if a lock-up is detected in order to resume normal operation.

When using a new T-motor Flame ESC. please calibrate the throttle range to ensure proper function. Additionally. if the throttle stick is not fully depressed when in use. you may notice the motor emitting brief beeping sounds.

The motor did not beep when in the bottom position. and it wouldn’t start rapidly. When in the bottom position. the motor or throttle may need to be recalibrated as the range was too narrow. Additionally. the ESC beeped. indicating no output signal. Please check if the throttle wire has been properly plugged into the channel of the receiver.
