Description
Features:
- Smart all-in-one telemetry*
- Fast, powerful 32-bit ARM M4 processor
- Waterproof
- Multiple options for easy programming:
- Button programming
- Smart ESC Programming Box
- SmartLink USB Updating and Programmer application
- Multi-point protection:
- Over-current protection
- Automatic LiPo low-voltage cutoff
- Thermal protection
- Failsafe protection
- Developed and designed by Spektrum™ engineers, in partnership with the industry’s leading ESC manufacturer
- Comes bundled with Spektrum Firma 1900Kv Brushless Motor
- Compact for easy installation in most applications
- Ready to install — no soldering required
- Rugged plastic case with mounting tabs
- Aluminum heat sink for high efficiency
- Cooling fan
- Firmware updatable through the Smart ESC Programming Box
- High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
- Limited 1-year warranty
Specifications:Auto Cutoff: YesBEC: YesBEC Continous Current: 5ABEC Type: Switch ModeBEC Voltage: 6VBattery Connector: IC5Battery Input Lead: 10AWG Dual IC5, EC5 compatibleBrakes: YesBushing Or Bearing: BearingCells: 4-8 cell LiPoConnector Type: 6.5mm BulletEfficiency: 90%Forward: YesHeight: 1.8″ (44mm), ESCInput Voltage: 3S – 8S LiPo,12-35.2VLength: 2.7″ (70mm), ESCLow-Voltage Cutoff Programmable: YesMaximum Burst Current: 1050AMaximum Continuous Current: 180A,160AMotor Connector: 6.5mm BulletMotor Output Lead: 6.5mm Female BulletsMotor Type: BrushlessNumber of Poles: 4Outer Diameter: 1.9 in (49mm), motorOutput: 6300WOverall Length: 3.3″ (85mm), motorOverload Protection: YesProgrammable: YesRPM/Volt (Kv): 1250KvRecommended Speed Control: Spektrum Firma 160 Smart ESCReverse: YesSensored: NoShaft Diameter: 3/16″ (5mm)Weight: 9.9oz (280g), ESC,26.1oz (740g), motorWidth: 3.03″ (77mm), ESCWire Gauge: 10 AWG
Includes:

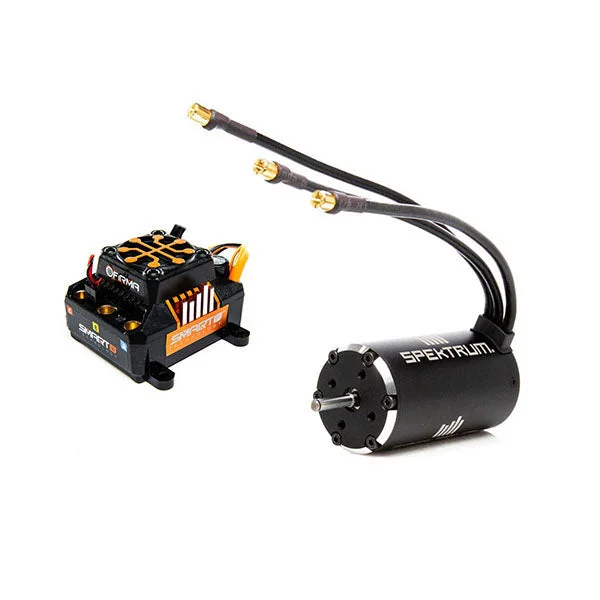

- (1) Spektrum™ Firma™ Smart ESC
- (1) Spektrum™ Firma™ 1250Kv Brushless Motor
- (1) Spektrum Smart sticker sheet
- (1) Product Manual
Needed to Complete:
- LiPo Battery w/EC5 or Spektrum Smart Battery w/IC5 connector*
*NOTE: Smart functionality requires use of Spektrum Smart compatible battery, transmitter and receiver.
