SmoothStyle 5inch Spare Parts – MyFPV

Description

SmoothStyle 5inch Spare Parts

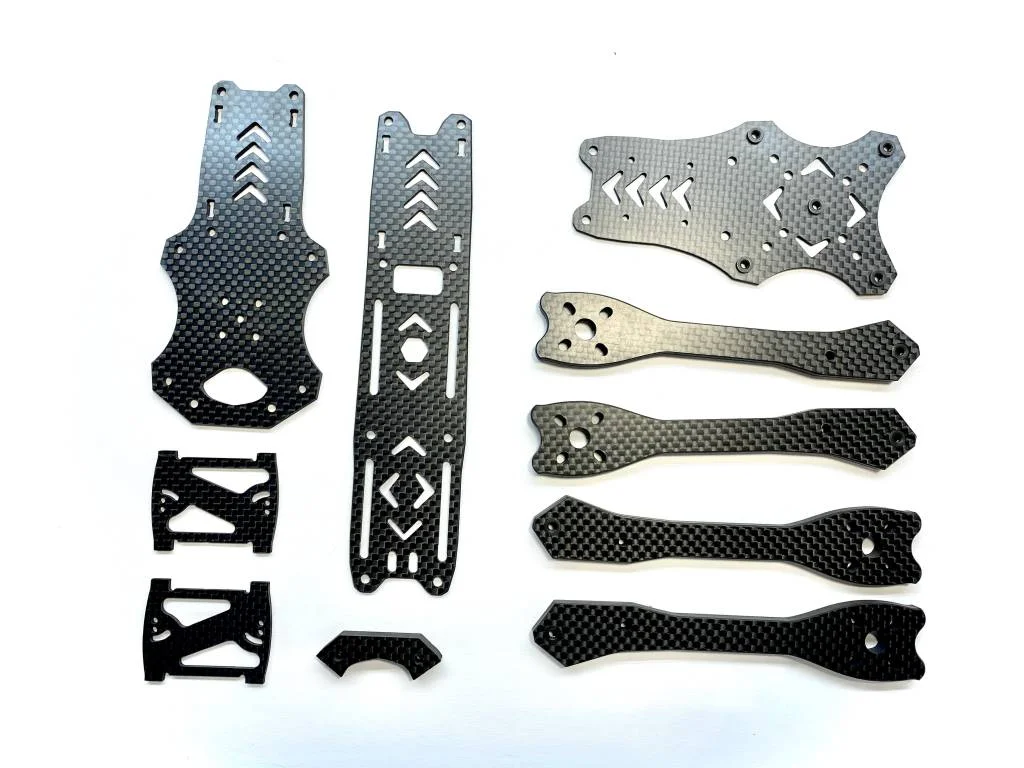

Keep your SmoothStyle 5″ frame in peak condition with this collection of genuine replacement parts. A hard crash doesn’t have to mean the end of your favorite FPV drone. This is your one-stop shop for all the official carbon fiber plates, arms, hardware, and accessories you need to repair, refurbish, or rebuild your SmoothStyle quad, ensuring it maintains its original durability and signature flight feel.

Select the Part You Need. Use the dropdown menu to select the genuine SmoothStyle spare part you need for your repair.

• Replacement Arms (6mm): The durable 6mm carbon fiber arms. Note that these arms are directional. Please choose the correct arm or 2-pack for your needs: Right Front / Left Rear or Left Front / Right Rear.
• Top Plate: The 2mm chamfered top plate. Features a cutout for battery lead routing and countersunk screws for flush battery mounting.
• Front Lower Plate: The robust 3mm front lower plate that forms the front of the main chassis.
• Rear Lower Plate: The 2mm rear lower plate that includes mounting holes for both 20x20mm and 30.5x30.5mm electronics stacks.
• Battery Pad: The custom-engraved, multi-layer silicone “Super Sticky” battery pad for a rock-solid grip on your LiPo.
• Full Hardware Kit: A complete set of all the standoffs, screws, and washers needed to build the frame from scratch.

Key Features of the SmoothStyle Frame System:

• Durable Construction: Built with high-quality carbon fiber, featuring robust 6mm thick arms for exceptional crash resistance.
• Easy Maintenance: The frame is designed for quick field repairs, with arms that can be replaced without disassembling the main electronics stack.
• Versatile Component Mounting: Supports a wide range of motors and both 20x20mm and 30.5x30.5mm stacks.
• Premium Quality: Using genuine spare parts is the only way to ensure your frame retains its intended performance and rigidity.

Specifications (for full frame reference)

• Prop Compatibility: Up to 5.1 inches
• Arm Thickness: 6mm
• Front Lower Plate Thickness: 3mm
• Rear Lower & Top Plate Thickness: 2mm (Rear) / 2.5mm (Top)
• FC Mounting: 20x20mm and 30.5x30.5mm
• Motor Mounting: 16x16mm up to 19x19mm

Includes

• 1x The selected spare part from the list above.
