Description

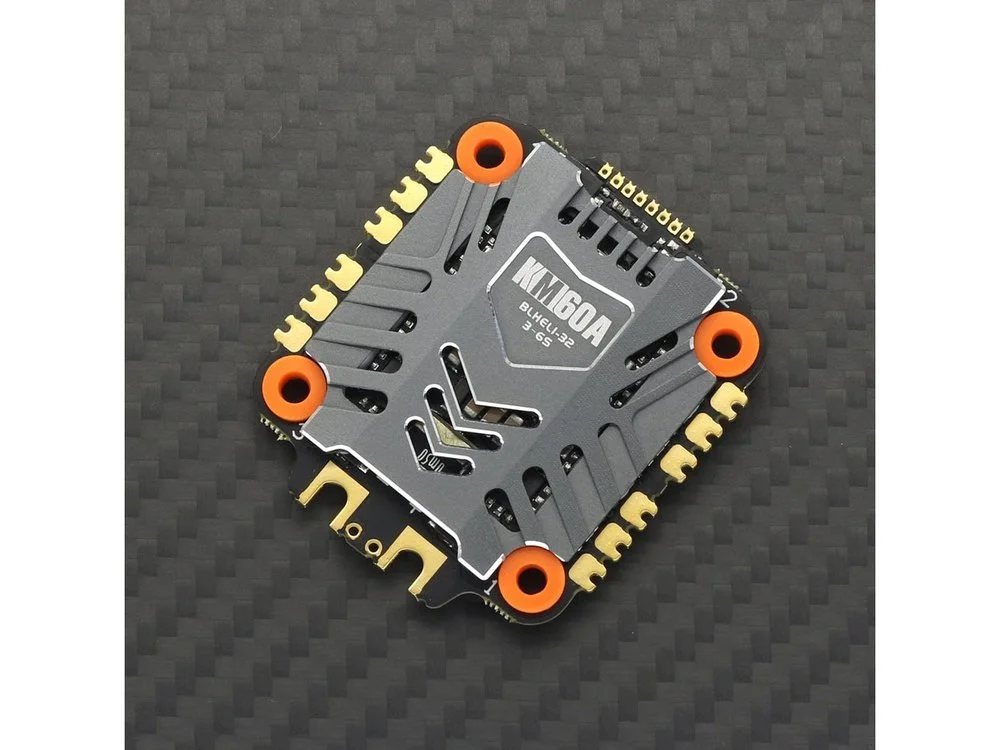

The Skystars RC KM60 is a 60A 4-In-1 BLHeli_32 ESC with all the latest features found in modern speed controllers. With a beefy heat sink cover, this ESC should offer smooth performance and great durability.
Features:
- Excellent over-current capability. Adopts the best PCB material and PCB production process – such as application of high TG materials, 3oz copper PCB & 2μm gold deposition process on PCB. 6-layer layout design of board, compared with others common 4 layer. Can withstand bigger current.
- Extremely stable support of 6S LiPo battery by use of 24 pcs of new Toshiba standard 40V 5×6 Mosfets & imported from USA or Japan electronic materials. Advanced lead-free SMT Processing technology makes ESC fully support 6s battery and get better performance.
- Excellent heat dissipation performance. The CNC hollow aluminum alloy shell is great for heat dissipation.
- Better control performance – flashed with the latest BLHeli_32 firmware in factory, support telemetry functions (including voltage ,RPMS & current )
Specifications:
- Input voltage: 3-6S LiPo
- Con.Current: 60A
- Peak Current: 80A≥ 10S
- Firmware: BLHeli_32
- Support : Dshot 600/1200
- Mounting hole : 30.5mm/M3
- BEC: No
- Product size: 41*46*7.6mm
- Weight: 18g
Includes:
1x Skystars RC KM60 60A BLHeli_32 4-In-1 ESC
4x Anti-Vibration Grommets (M3x8mm)
4x Anti-Vibration Grommets (M3x3.5mm)
1x XT60 connector and wires
2x 8pin wiring harness (1x 70mm,1x 50mm)
1x 35v 560uf Capacitor
