Skystars RC F7RS 3-6S Mini Flight Controller 20×20

Description

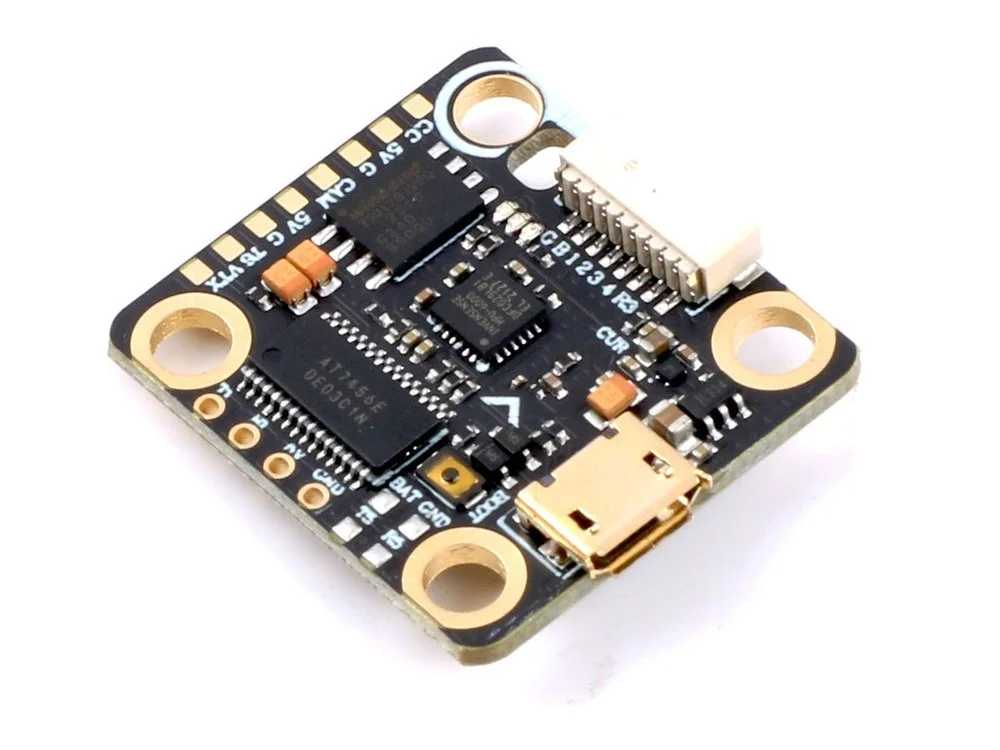

Skystars F7RS is a flight controller designed for racing and freestyle 5″ drones. The flight controller is based on the F722 processor with a MPU6000 gyro. The FC also includes a 5V 3A BEC, OSD and 16MB of blackbox memory. The flight controller is protected against voltage spikes by a TVS diode. The main advantage of the flight controller is its small size and light weight, which is especially appreciated by racing drone pilots.

Specifications:

• MCU: STM32F722RGT6 216MHz
• Gyro: MPU6000 (SPI)
• Power supply: 3-6S Lipo
• OSD: Betaflight & DJI HD OSD (UART6)
• Number of UARTs: 6
• Buzzer Pad:  YES
• Barometer: No
• BEC: 5V,3A
• Blackbox: 16MB
• Size: 26x28x7mm
• Weight: 4.9g
• Mounting holes: 20x20mm M3
• Firmware:  SKYSTARS F7RS

Includes:
1x Skystars RC F7RS 3-6S Flight Controller
1x Cable Set
1x Anti-Vibration Grommet Set
