Skystars RC F722HD 20×20 Flight Controller

Description

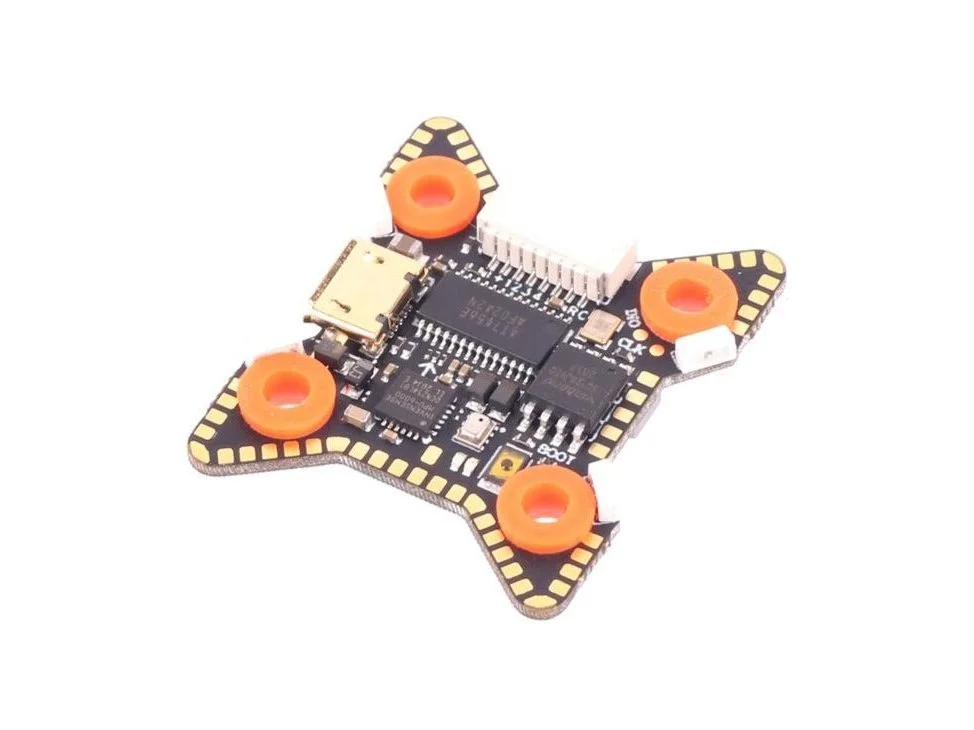

The Skystars RC F722HD is an F7 based flight controller with 20×20 mounting pattern and features 6 hardware UARTS, STM32F722RGT6 216MHz MCU, barometer, and support for both Betaflight OSD and DJI OSD (UART 6).  Fantastic little board with a great layout and easy to reach solder pads at a fantastic price.

Specifications:

• MCU: STM32F722RGT6 216MHz
• IMU: MPU6000 (SPI)
• OSD: Betaflight OSD & DJI HD OSD (UART6)
• 6 hardware UARTS (UART123456)
• Barometer: YES
• Buzzer Pad: YES
• 5V 2A & 10V 2A
• Input Voltage: 3-6S Lipo
• Blackbox: 16MB
• Firmware: SKYSTARS F7HD
• Dimensions: 35x28x7mm
• Mounting Holes: Standard 20mm/M3 square to center of holes
• Weight: 4.2g

Pinout

Includes:
1x Skystars RC F722HD DJI 20×20 Flight Controller
4x Rubber Grommet
1x Wire Harness

Download Connection Diagrams Here
