Description
Package Includes:

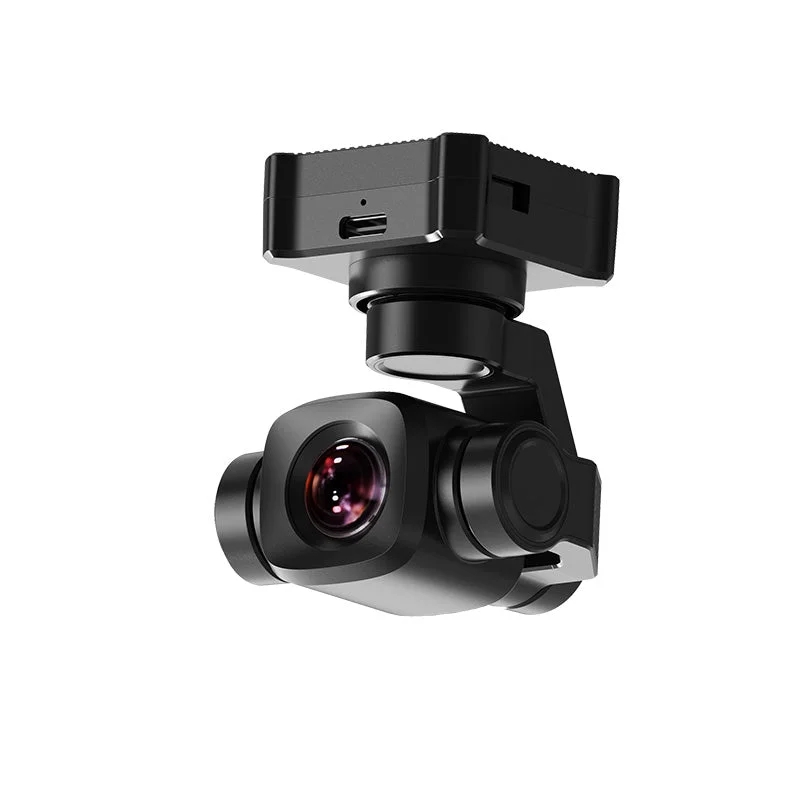

1 x A8 mini Gimbal Camera
1 x MK15 Enterprise Standard Combo(Dual Version)
SIYI just release one mini handheld remote controller with 15KM long range 1080P digital image transmission with 5’5″ HD high brightness screen. There are 4 versions. suitable for both agriculture drones and other industrial applications drone or normal UAV multi-rotor drones.
15KM Long Range Test
Main Features:
–15 KM 1080p Digital Image Transmission. 1080P/embed/WBcYuLRWkBE?rel=0″ height=”360″ frameborder=”0″ allowfullscreen=””>
Specifications:
Item Brand: SIYI
Model: A8 mini
Video Output Port: Ethernet. HDMI. CVBS (AV)
Control Signal Input Port: S.Bus / UART / UDP
Control Signal Output Port: S.Bus
Working Voltage: 11 ~ 25.2 V
Power Consumption: Summit 12 W
Working Temperature: -10 ~ 50 ℃
Dimension: 55*55*70 mm
Weight: Approx. 95 g
Gimbal
Angular Vibration Range: ±0.01°
Controllable Pitch Angle: -135° ~ +45°
Controllable Yaw Angle: -160° ~ +160°
Controllable Roll Angle: -30° ~ +30°
Camera
Lens: 6X Digital
Focal Length: 21 mm
Image Sensor: Sony 1/1.7-inch. 8 MP effective resolution
Aperture: F2.8
FOV: 93°
TF Recording Resolution:
4K (4096 x 2160) @ 25 fps
2K (2560 x 1440) @ 30 fps
1080p (1920 x 1080) @ 30 fps
720p (1280 x 720) @ 30 fps
Supported File System: FAT32 (exFAT will be supported later by firmware update)
Photography File Format: JPG
Video File Format: MP4
Supported MicroSD Cards: MicroSD Class10. max 128 GB
White Balance: Auto
