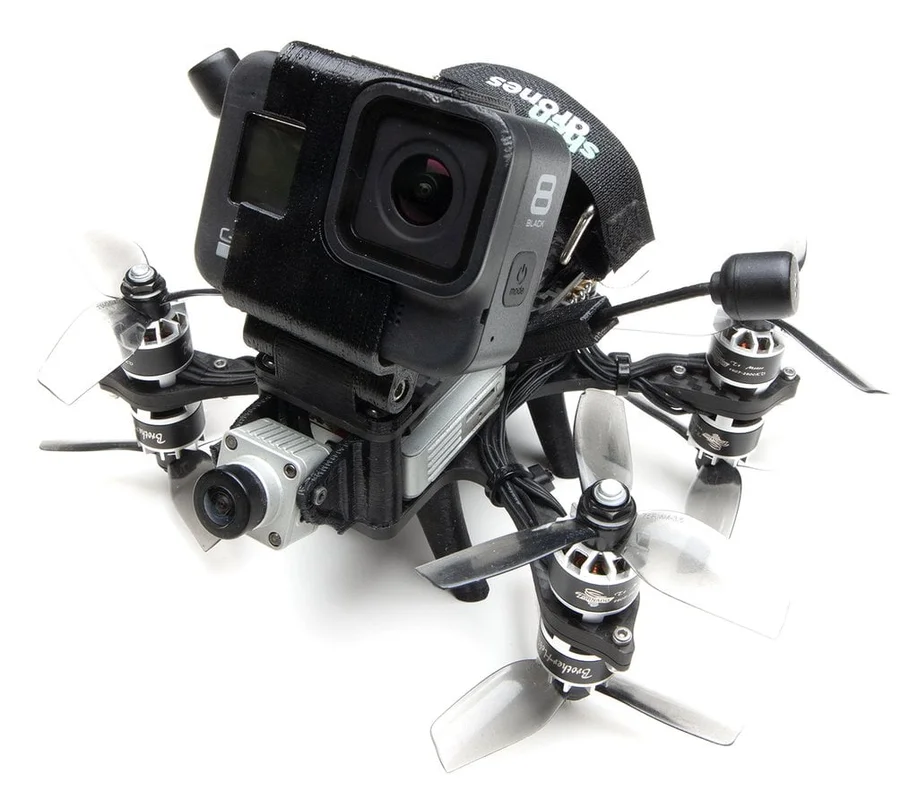

Shendrones Big Baby with 3D Printed Parts
See all of our Shendrones Products!
Key Features
-
X8 Motor Configuration: Double the motors, double the thrust for explosive power
-
Durable Construction: 4mm base plate + 2mm top plate for crash resilience
-
Customizable Stack Height: Standard 25mm (30/40mm available on request)
-
3D-Printed Integration: Includes FPV cam mount, DJI Air Unit wedge, and Hero8 variable-angle hardware
-
Dual Stack Compatibility: Fits 30×30mm and 20×20mm flight controllers/ESCs
-
Optimized for Lumenier Lux7: Ideal FC for stable X8 performance
-
Print-Your-Own or Pre-Built: STL files provided, or choose red, orange, blue, or clear printed parts
Technical Specifications
-
Frame Size: 150mm (X8 configuration)
-
Prop Size: 3″
-
Base Plate: 4mm carbon fiber
-
Top Plate: 2mm carbon fiber
-
Motor Mounts: 2mm “Cat Dog” low-profile stacking
-
Recommended Motors: 1407 2800KV (6S)
-
Battery: 850mAh 6S LiPo
-
Camera Support: DJI Air Unit + Hero8 (3D-printed mounts included)
Package Includes
-
Shendrones Big Baby X8 frame (base/top plates)
-
3D-printed Hero8 variable-angle camera hardware
-
Motor stacking hardware
-
STL files for custom 3D-printed parts
You can print the parts yourself, the files are here
