SCRATCH & DENT Hobbywing QuicRun 10BL120 G2 Sensorless Brushless ESC/3652SL Motor Combo (4000kV)

Description

SCRATCH & DENT: The original packaging has been damaged; the product has been repackaged and is new and unused.
Sold as is, photo of product may not be an accurate representation of product condition. ALL SALES ARE FINAL.

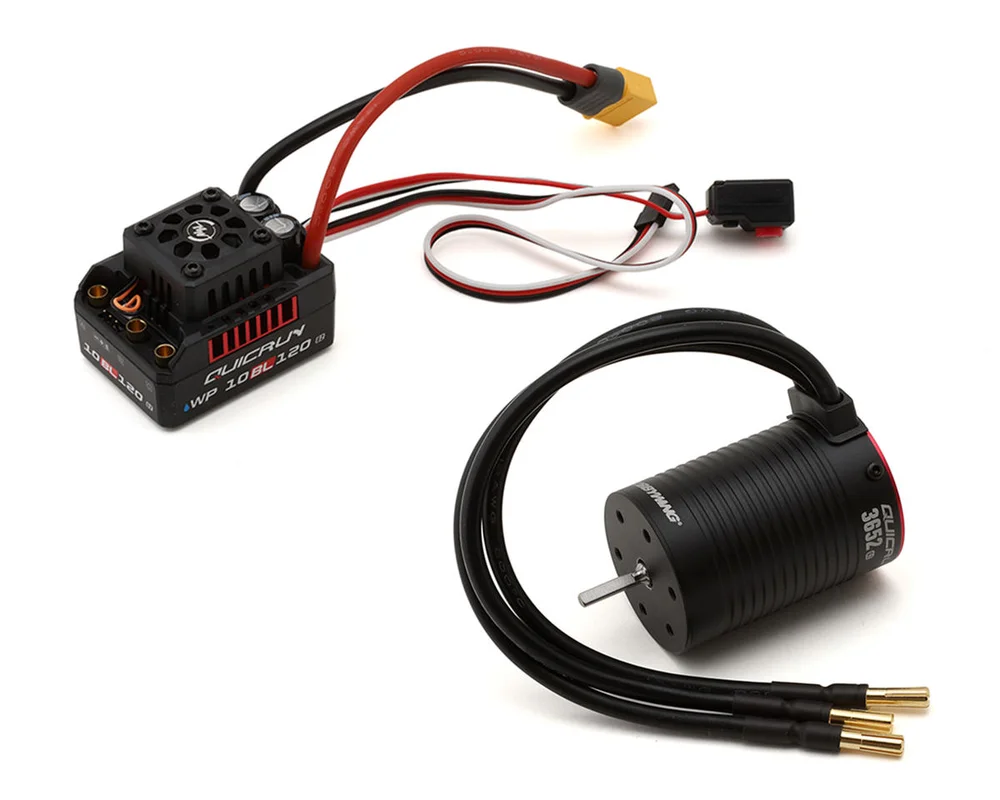

Hobbywing Quicrun 10BL 120A ESC & Motor Combo

The Quicrun 10BL120 G2 Sensorless Brushless ESC and Motor Combo have been designed to deliver extreme power and reliability with a more efficient dust-proof motor and IP-67 waterproof rated ESC. The 10BL’s built in capacitor improves on the brownout protection, efficiency, and thermal protection. This combo will be a great option for a wide range of RC models.

Features:

• G2 QuicRun 10BL120
• Intelligent freewheeling technology
• Extreme performance
• Powerful built-in BEC
• Efficient cooling system
• Capacitor Thermal Protection
• Built-in capacitor
• IP-67 waterproof Rating

G2 QuicRun 3660SL

• High efficiency for more power with lower temperatures!
• 4-pole rotor design for more torque with strong explosive force.
• Compared with the previous generation of motors, the output power and efficiency are increased by more than 10%, and the motor temperature is effectively reduced under the same load.
• 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.

Specifications:

• ESC:
• Scale: 1/10th
• Brushed/Brushless: Brushless
• Sensored/Sensorless: Sensorless
• Waterproof: IP-67
• Current:
• Continuous: 120A
• Peak: 760A
• Input Voltage: 2-4S LiPo
• BEC Output: 6V/7.4V @ 5A
• Output Connectors: 4.0mm Bullets
• Dimensions: 2.07×1.56×1.50″ (52.8×39.8×38.2mm)
• Weight: 4.19oz (119g)
• Motor:
• Input Voltage: 2S-3S LiPo
• KV: 4000kV
• Pole: 4
• Motor Diameter: 1.42″ (36mm)
• Motor Length: 2.05″ (52mm)
• Shaft Diameter: 0.13.” (3.175mm)
• Shaft Length: 0.59″ (15mm)
• Front Bearing size: D13*D5*T5
• Rear Bearing size: D13*D5*T4
• Weight: 224g

Includes:

• (1) QuicRun 10BL120 G2 1/10 Sensorless Brushless ESC
• (1) QuicRun 3652SL G2 Sensorless Brushless Motor (4000kV)

This product was added to our catalog on June 20, 2024
