Servo Overview:

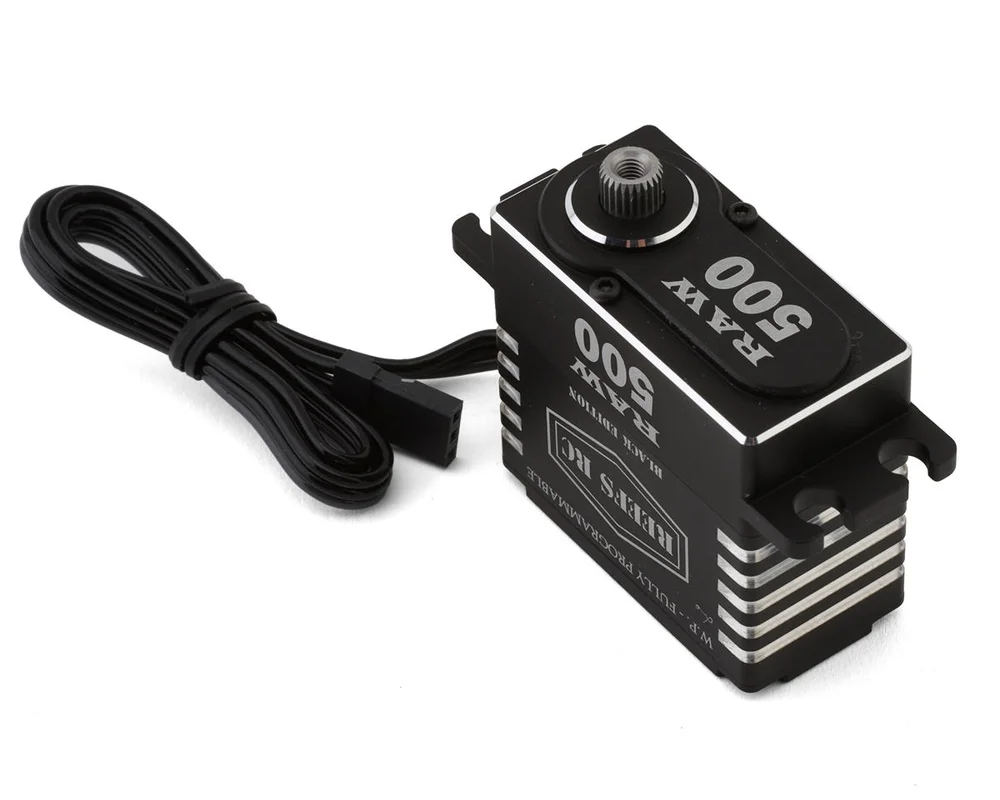

This is the Reefs RC RAW500 High Torque and Speed Digital Brushless Servo from Reefs RC, designed for high-torque, high-speed performance in demanding RC applications. With its high torque output of 565oz-in (40.7kg-cm) at 8.4 Volts, lightning speed operation of 0.08sec/60° at 8.4 Volts, fully programmable capabilities and robust construction, this servo offers exceptional reliability and precision for a variety of RC vehicles, from crawlers to boats!
Features:
- Powerful 4-Pole brushless motor
- “Submarine Waterproof” with 7-point seals
- High voltage capable
- Magnetic angle sensor
- Internal steel gears
- CNC Aluminum casing with “ULTRA” finish
- Fully Programmable with REEFS Software
Specifications:
- Speed:
- @6.0V: 0.11sec/60°
- @7.4V: 0.09sec/60°
- @8.4V: 0.08sec/60°
- Torque:
- @6.0V: 450oz-in (32.4kg-cm)
- @7.4V: 500oz-in (36kg-cm)
- @8.4V: 565oz-in (40.7kg-cm)
- Motor: Brushless
- Operating Voltage: 5.0V-8.4V
- Dimensions(LxWxH): 1.57x.79×1.5in (39.87×20.06×38.1mm)
- Weight: 2.75oz (77.96g)
- Operating Spline: 25T
Includes:
- (1) RAW500 Digital Waterproof Brushless Black Edition Servo
- Assorted Servo Horns and Mounting Hardware
