Description
Overview

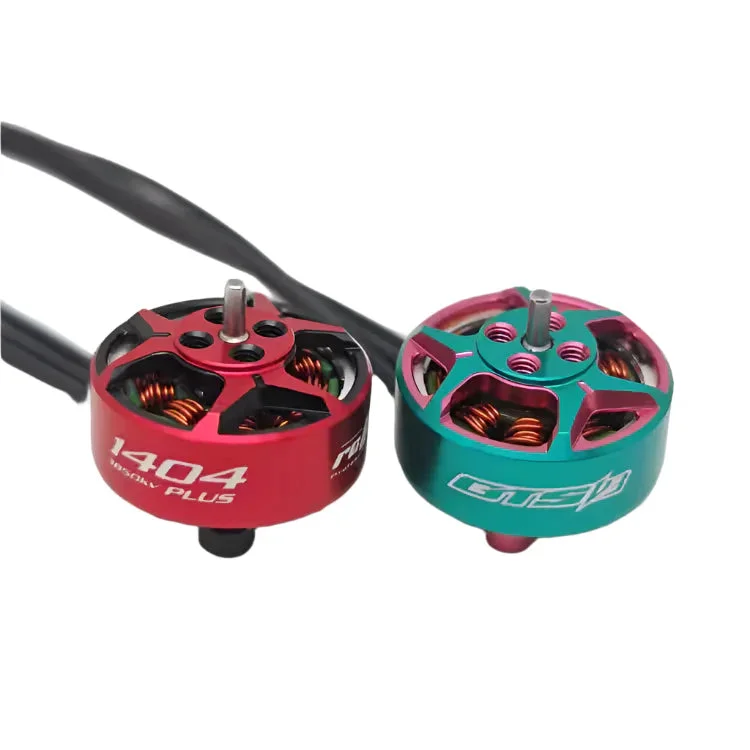

The RCINPOWER GTS V3 1404 Plus series is purpose-built for high-performance 3-inch FPV racing and freestyle drones. Featuring a lightweight 9g design. 12mm stator diameter. and aerospace-grade CNC structure. this motor delivers outstanding thrust-to-weight ratio and thermal stability. Available in 2850KV. 3850KV. and 4680KV variants. it supports 3S to 6S LiPo and adapts seamlessly to both low-end efficiency builds and high-thrust aggressive setups.
Key Specifications
| Model | 2850KV | 3850KV | 4680KV |
|---|---|---|---|
| Voltage | 4S–6S | 3S–4S | 3S–4S |
| Max Power | 461W | 330W | 429W |
| Max Current | 19.2A (3S) | 20.6A (3S) | 26.8A (3S) |
| Idle Current | 0.42A @10V | 0.7A @10V | 0.85A @10V |
| Internal Resistance | 280mΩ | 170mΩ | 133mΩ |
| Weight | 9g (with 3cm wire) | 9g | 9g |
| Shaft Dia. | 1.5mm (2mm internal) | 1.5mm (2mm internal) | 1.5mm (2mm internal) |
| Dimensions | Φ18.2 × 13.1mm | Φ18.2 × 13.1mm | Φ18.2 × 13.1mm |
Performance Test Highlights
GF D63*3 Props (3-Inch)
-
4680KV: Max thrust 467g. power 305.6W. efficiency 1.528g/W @100%
-
3850KV: Max thrust 421g. power 273.6W. efficiency 1.539g/W @100%
-
2850KV: Max thrust 498g. power 338.4W. efficiency 1.472g/W @100%
HQ T333 Props
-
4680KV: Max thrust 575g. power 428.8W. efficiency 1.341g/W @100%
-
3850KV: Max thrust 492g. power 328.0W. efficiency 1.5g/W @100%
-
2850KV: Max thrust 610g. power 460.8W. efficiency 1.324g/W @100%
Features
-
High-grade 9N12P configuration for optimal torque and responsiveness
-
Ideal for 3-inch FPV drones in freestyle. racing. or cinematic configurations
-
Efficient thermal control with aluminum alloy casing – peak temps between 65–85°C
-
Optimized for Gemfan. HQProp. and GF 3-inch propellers
-
Ultra-lightweight at just 9g – perfect for sub-250g builds
-
Durable design with high-load thrust capability and extended flight reliability
Recommended Applications
-
3-Inch FPV Racing Drones
-
Toothpick-Class Freestyle Builds
-
Lightweight Cinematic Drones
-
Compatible with GF D63. GF 3016. HQ T333. GF 4024 props
