RadioMaster TX12 MK II – ELRS / CC2500 EdgeTX Multi-Module Compatible Digital Radio Transmitter TBS CROSSFIRE MICRO TX Controller FPV Remote Controller

Description

RadioMaster TX12 MK II SPECIFICATIONS

Wheelbase: Screws

Upgrade Parts/Accessories: Adapter

Tool Supplies: Cutting

Technical parameters: Value 2

Size: AS DESCRIPTION

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

Recommend Age: 14+y

RC Parts & Accs: Connectors/Wiring

Quantity: 1 pcs

Origin: Mainland China

Model Number: As

Material: Composite Material

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

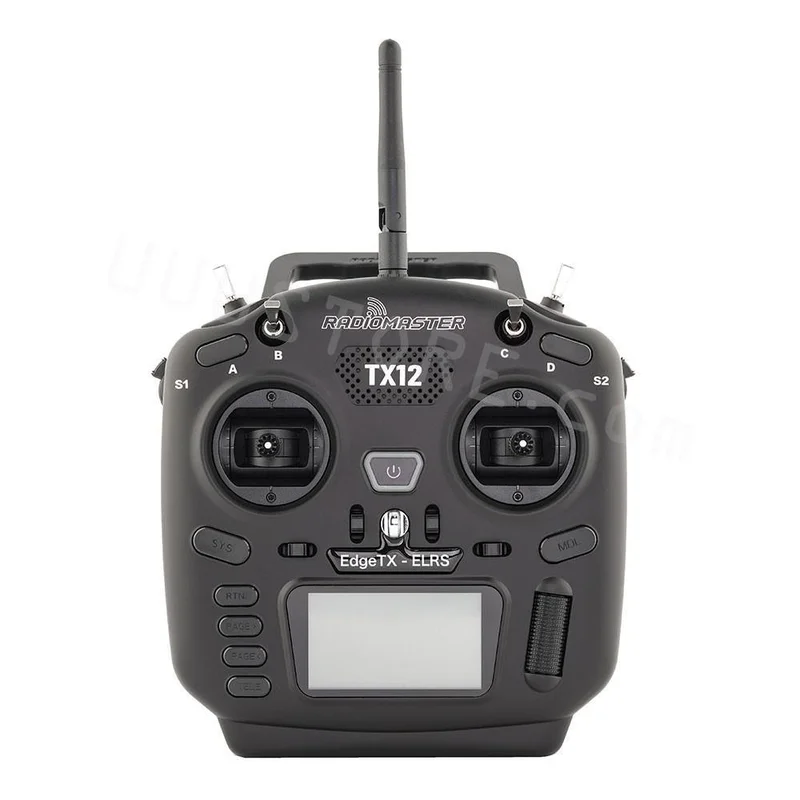

RadioMaster TX12 MKII ELRS EdgeTX Multi-Module Compatible Digital Radio Transmitter With TBS CROSSFIRE MICRO TX Radio Controller

:

Note：Mode 1-Right-hand throttle

Mode 2-Left hand throttle

New to TX12 MKII
★ Updated rear case with comfortable grips
★ Improve S1 / S2 Grips
★ Improved USB-C QC 3.0 Charging
★ Updated main board design
★ Updated MCU to STM32F407
★ EdgeTX factory installed
★ SD Card included
★ Internal ExpressLRS RF Module

Specs:
Size: 170*159*108mm
Weight: 363g
Frequency: 2.400GHZ-2.480GHZ
RF Chip option: ExpressLRS (ELRS)
Transmitting Power: 20dbm
Antenna Gain: 2db
Working Current: [email protected]
Voltage Range: 6.6-8.4v DC
Range: > 2km (depending on receiver)
Radio Firmware: EdgeTX (Transmitter) /  ExpressLRS (RF module)
Channels: Up to 16 (depending on receiver)
Display: 128*64 Monochrome LCD display
Gimbal: High precision hall gimbals
External module: JR/FrSKY/Crossfire compatible
Upgrade Method: USB/SD card & EdgeTX Buddy online or EdgeTX Companion PC software
USB Charging: QC3 USB-C
SD Card: Included

RadioMaster TX12 MK II features an adjustable gimbal system without requiring disassembly. allowing for a range of 380-540 MHz. The case design has been improved with ergonomic grips and a S1/2 slider grip. It also includes a USB port trainer socket. supports USB simulation. and offers ExpressLRS and BLE joystick modes. allowing for Bluetooth connectivity to PCs. tablets. and phones.

CC25OO ExpressLRS Image Size 170*159*108mm Weight 363g (w/o battery) Display 128*64 Monochrome LCD Module Bay Standard JR (Compatible with TBS Micro Crossfire Tracer IRC Ghost) Trainer Socket 3.Smm MONO Speakers Single speaker Radio Firmware EdgeTX (Preinstalled)
