Description

RadioMaster RANGER ELRS 2.4G RANGER MICRO NANO Transmitter SPECIFICATIONS

name: hanma

Wheelbase: Upper Shell

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Adapter

Tool Supplies: Battery

Technical parameters: KV1100

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 14+y

RC Parts & Accs: Antennas

Origin: Mainland China

Model Number: RadioMaster Ranger

Material: Plastic

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: abay

RadioMaster RANGER ELRS Nano Module Regulatory Domain: ISM (24GHz) MCU: ESP32 (main). ESP8285 (auxiliary. used as an ESP backpack) RF Chip: SX1281IMLT RT Frequency Range: 2.4 GHz to 2.48 GHz Maximum Packet Rate: up to 500 Hz or 1000 Hz.

Micro Features High-efficiency cooling system Up to 1Watt Power output Wifi and Bluetooth support Packet rates up to F-1OOOHz T-antenna included With the Micro connector; support TX16S and TX12 MKII radio .

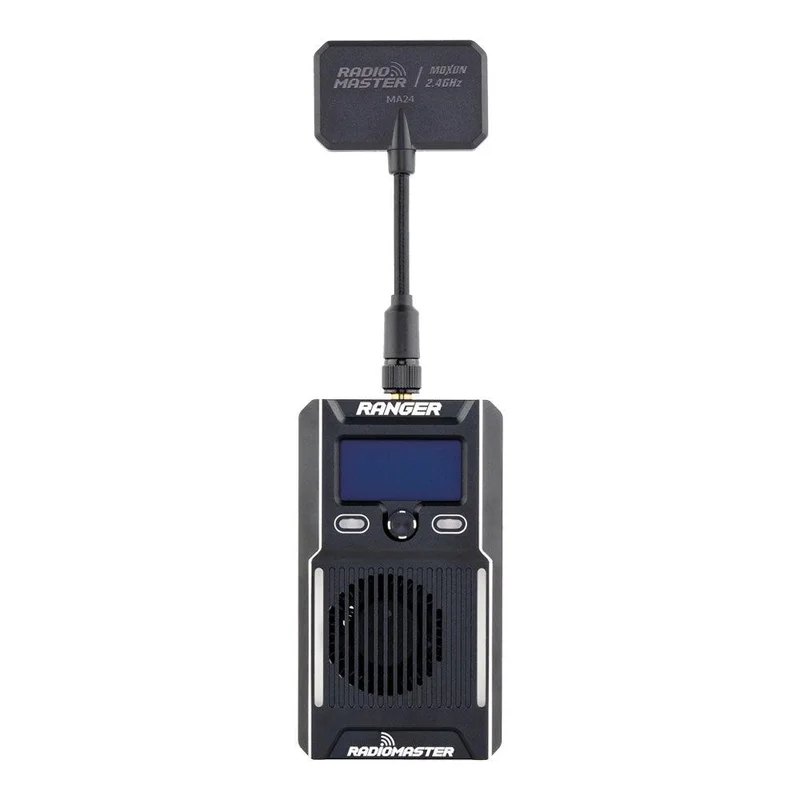

Ranger

Features

• OLED Display
• Rugged CNC Case

• Built-in Accelerometer

• Packet rates up to F-1000Hz

• Up to 1 Watt Power output

• Wifi and Bluetooth support
• High-efficiency cooling system
• 5 Direction Nav key and customizable shortcut buttons
• Micro and Nano adapters included
• Moxon and T-antenna included
• CRSF cable for compatible Futaba radios included


  Specification

  • Item: Ranger 2.4GHz ELRS Module
  • Regulatory Domain: ISM2400
  • MCU: ESP32(main). ESP8285(aux. as ESP backpack)
  • RF chip: SX1281IMLTRT
  • Frequency Range: 2400 MHz – 2480 MHz
  • Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
  • Minimum receiver refresh rate: 25Hz
  • RF Output Power: 30dBm for FCC. 20dBm for CE (Adjustable by LUA)
  • Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket
  • Futaba CRSF socket cable: Included
  • OLED screen:64x128px
  • Wifi
