Description
High-Performance Gyro with Receiver

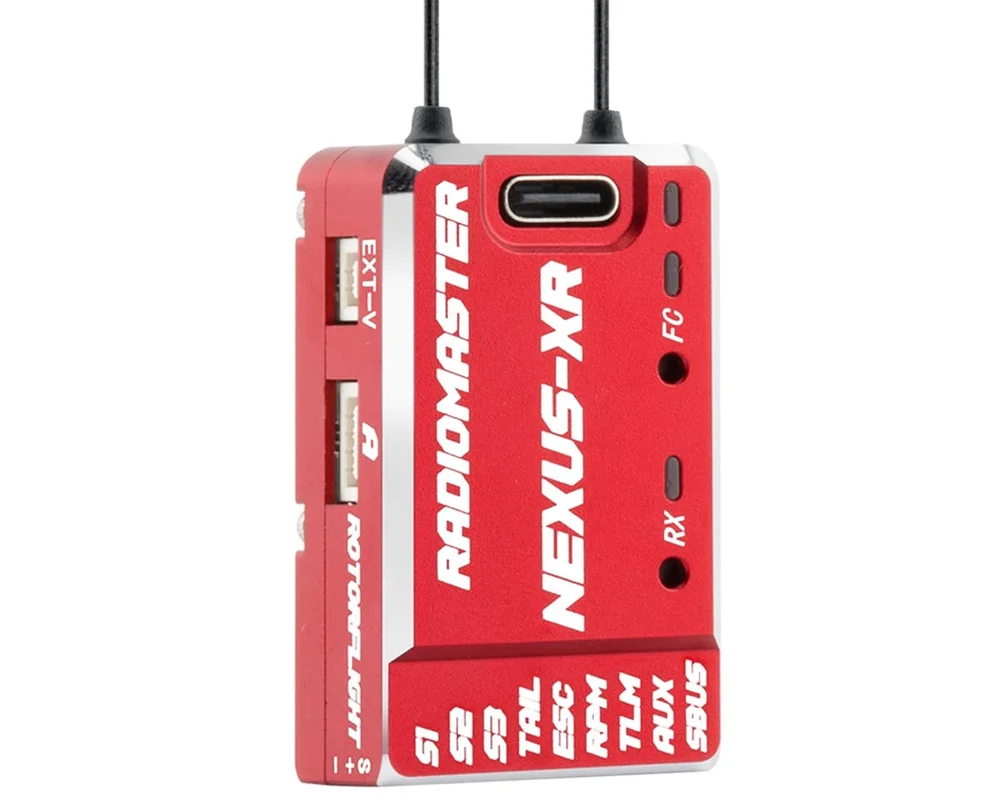

The RadioMaster Nexus-XR Rotorflight Helicopter 2.4GHz Receiver Gyro is a high-end, integrated flight controller and receiver system built specifically for RC helicopter pilots seeking precision, simplicity, and reliability.
About the Nexus-XR
Advanced Flight Control Performance
Optimized for Rotorflight 2.2, the Nexus-XR combines a powerful STM32F722 MCU with a high-performance ICM42688P 6-axis gyroscope/accelerometer, delivering exceptionally smooth and accurate flight control. The built-in 256MB flash memory supports extensive flight logging, making it easier to fine-tune performance and diagnose issues. With multiple UART ports and additional PWM outputs, the system is highly adaptable for complex helicopter configurations. Its plug-and-play support for ExpressLRS RP3-H receivers adds convenience, while the CNC-machined aluminum case enhances durability and acts as a heat sink to maintain optimal temperatures during demanding flights.
Integrated ExpressLRS Receiver for Seamless Setup
What sets the Nexus-XR apart is its internal RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver, which offers robust, low-latency signal performance. Utilizing two independent RF paths, it ensures stable, interference-resistant communication with your transmitter. The built-in receiver eliminates the need for additional wiring or mounting space, simplifying installation, especially in compact or streamlined helicopter frames.
Versatile Power & Safety Features
Designed for flexibility, the Nexus-XR supports a wide input voltage range of 5V to 16V, making it compatible with both standard and high-voltage systems. It also supports 12V servos and tail servo/ESC compatibility (760µs/1520µs), expanding its use across various build types. Internally, the system uses isolated power rails to reduce electrical noise and protect sensitive components. For easy configuration access, a USB-C extender is included, and the built-in Rotorflight Rescue function provides an essential emergency recovery feature.
Features:
- Integrated RP4TD-M ExpressLRS 2.4GHz mini true diversity receiver
- Optimized for Rotorflight 2.2
- STM32F722 MCU + ICM42688P gyro/accelerometer
- 256MB onboard flash memory
- Multiple UART ports
- Additional PWM outputs
- CNC-Machined aluminum case
- Wide voltage input range (5V–16V)
- Tail servo & ESC compatibility
- Rotorflight rescue functionality
