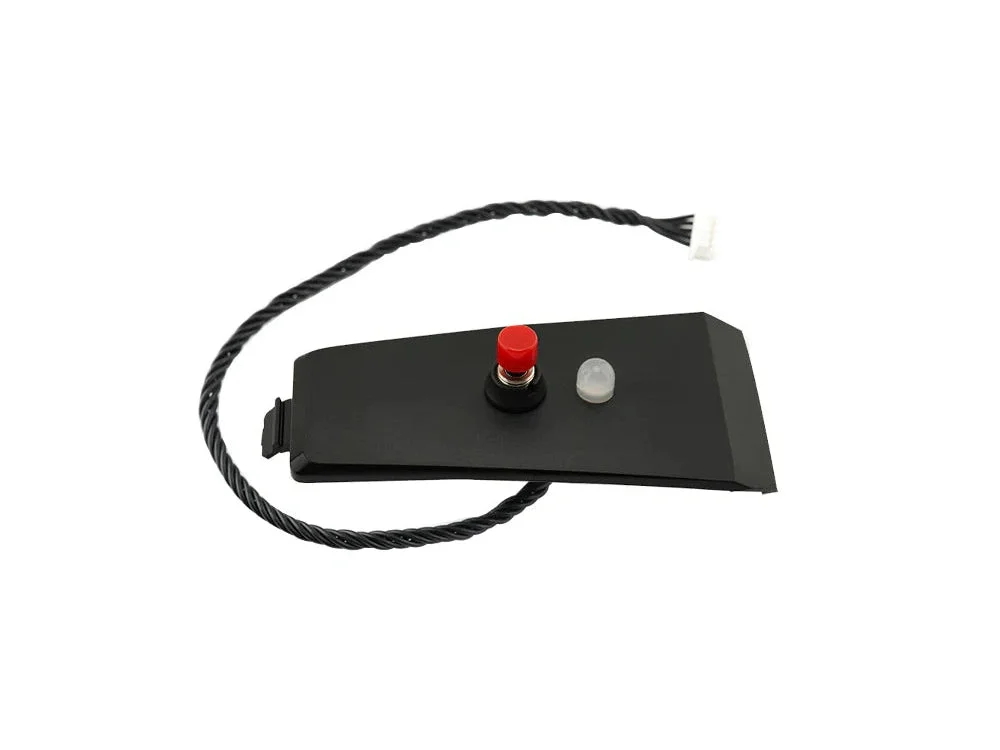

Radiomaster MT12 Gyro Control Module

Description

The MT12 gyro enables control of two channels using hand gestures, allowing you to operate devices such as a pan/tilt gimbal, RC tank turret, rear-wheel steering, and more through the Radiomaster MT12 Surface Radio. When installed in the MT12 expansion slot, this two-axis gyro integrates your hand movements into the control stream through the advanced mixing and programmability of EdgeTX. The only limit is your imagination!

Specifications:

• Power Supply: DC 3.3V
• Weight: 8.3g
• Dimensions: 65.0*33.0 mm
• X-axis Angle Range: 90°  [-45° to 45°]
• Y-axis Angle Range: 90°  [-45° to 45°]

Installation:

1. Remove the battery from the bottom of the MT12
2. Remove the top cover from the MT12 by pushing away from the grip
3. Install the Gyro module at the top of the radio base
4. Plug the cable into the 5pin connector in the battery compartment

Includes:
1x RadioMaster MT12 Gyro Control Module
1x 5pin JST cable (Installed on Module）
