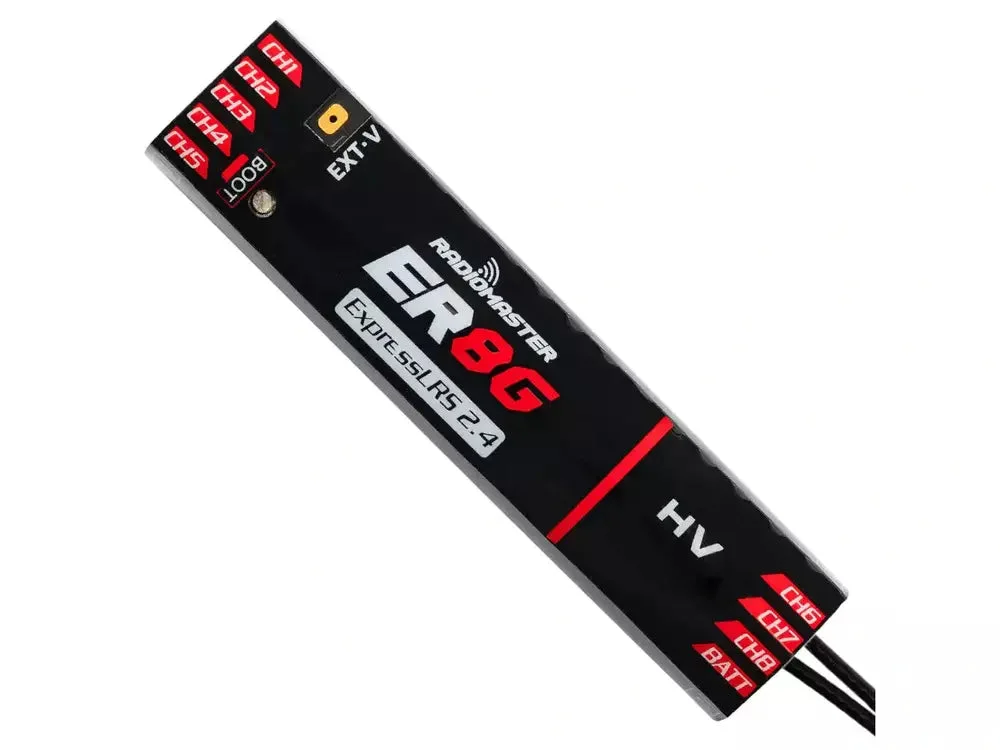

Radiomaster ER8G and ER8GV ELRS 2.4GHz PWM Receiver

Description

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed, and ultra-long range bringing you brand new experience with your hobby.

The ER8G & ER8GV receivers have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use (only one voltage input can be used at any given time). Both ER8G & ER8GV feature a dual-antenna with telemetry power up to 100mw and can be used with a 1S Lipo receiver battery.

The ER8G Receiver has the same functionality as the ER8GV only without a built-in Vario for competitions that prohibit the use of Vario or simply for users who do not need a Vario in their receiver.

Features:

• Based on the Revolutionary ExpressLRS System
• High performance, high reliability, flexible configuration, fast response speed, and ultra-long range
• Support 8 PWM Channels
• Optimized ground up PCB design
• Automatically voltage telemetry of external battery voltage or built-in receiver voltage
• ER8GV receiver is built-in high-precision air pressure sensor (Vario)
• Supports Wi-Fi updates and WEBUI configuration
• Reserve 4pin CRSF input port
• High quality 2.54 mm connector
• Standard 20 cm High Sensitivity Antenna
• For fixed-wing aircraft and gliders

Specifications:

ER8G

• Item: ER8G 2.4GHz ELRS PWM Receiver
• Power supply: DC 3.5 – 8.4V
• Antenna type: 20cm high sensitivity antenna
• Wireless protocol: ExpressLRS 3.3.0 pre-installed
• Output channel: 8CH PWM
• Telemetry power: maximum 100mw (LUA can be set)
• Battery voltage detection range: DC 4.0 – 35V
• Weight: 12 grams
• Dimensions: 60*13.5*13mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER8G

ER8GV

• Item: ER8GV 2.4GHz ELRS PWM Receiver
• Power supply: DC 3.5 – 8.4V
• Antenna type: 20cm high sensitivity antenna
• Wireless protocol: ExpressLRS 3.2 pre-installed
• Output channel: 8CH PWM
• Return power: maximum 100mw (LUA can be set)
• Built-in high-precision air pressure sensor (Vario)
• Battery voltage detection range: DC 4.0 – 35V
• Weight: 12 grams
• Dimensions: 60*13.5*13mm
• Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER8GV

Dimensions:

Radiomaster ER Series Receivers

• ER4 ELRS PWM Receiver
• ER6 ELRS PWM Receiver
• ER8 ELRS PWM Receiver
• ER6G/ER6GV ELRS PWM Receiver
• ER8G/ER8GV ELRS PWM Receiver

Includes:
1x Radiomaster ER8G or ER8GV ELRS 2.4GHz PWM Receiver
2x Heat-Shrink Tube
1x Voltage Telemetry Wire (Type-A)
1x CRSF Wire
1x ELRS- RX- SBUS Wire
1x User Card

Download ER8G Manual
Download ER8GV Manual
