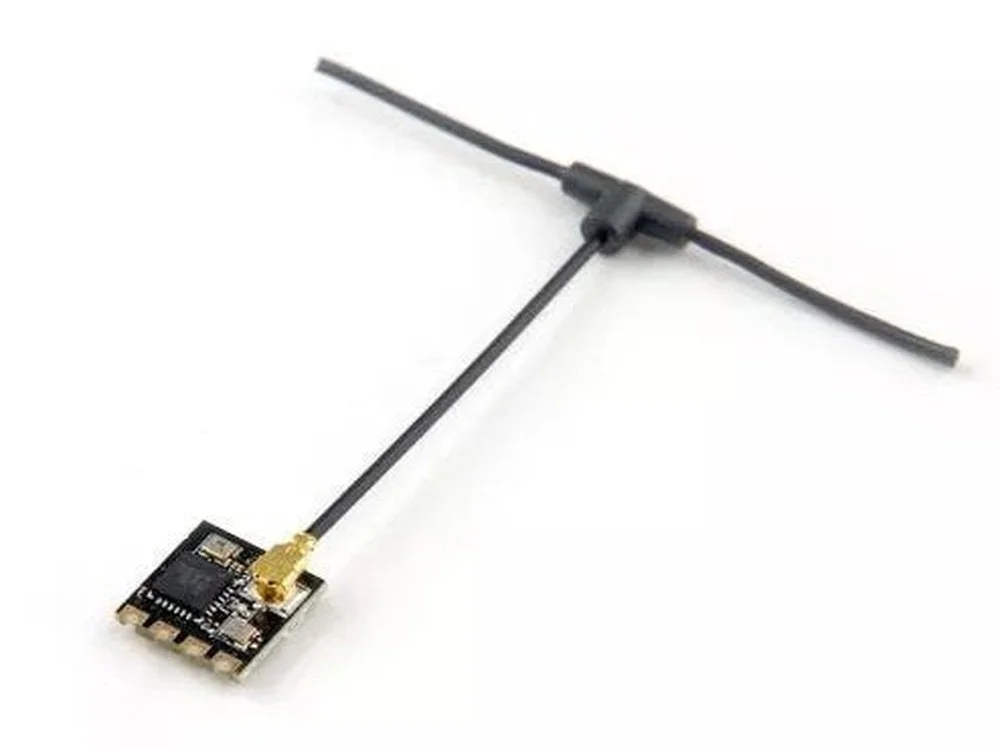

Radiomaster 2.4GHz ExpressLRS EP1 Nano Receiver

Description

The Radiomaster ExpressLRS 2.4GHz EP1 Nano Receiver is based on the open-source ExpressLRS project. Designed by @Jye Smith from the ELRS development team, the rx uses the STM32L432KBU6 MCU and SX1280 RF chip.

Due to the low-latency and high-refresh-rate RF module, they are very comfortable for FPV races and Long Range FPV.They are also very suitable for Tiny whoop because of the ultra-light Nano size.

Specifications:

• Item Name: EP1 Nano Receiver
• Type: ISM
• ESP8285 MCU
• SX1280IMLTRT RF Module
• Omnidirectional antenna
• Frequency Range: 2400 MHz to 2500 MHz
• Maximum receive refresh rate: 500Hz
• Minimum receiver refresh rate: 25Hz
• Working voltage: 5v
• Weight: 0.42g(without antenna)
• Dimension: 10mm*10mm*3mm
• Peak gain: 2.23dB

Includes:
1x Radiomaster 2.4GHz ExpressLRS EP1 Nano Receiver
1x 40mm Omnidirectional Antenna
1x 90mm Omnidirectional Antenna
