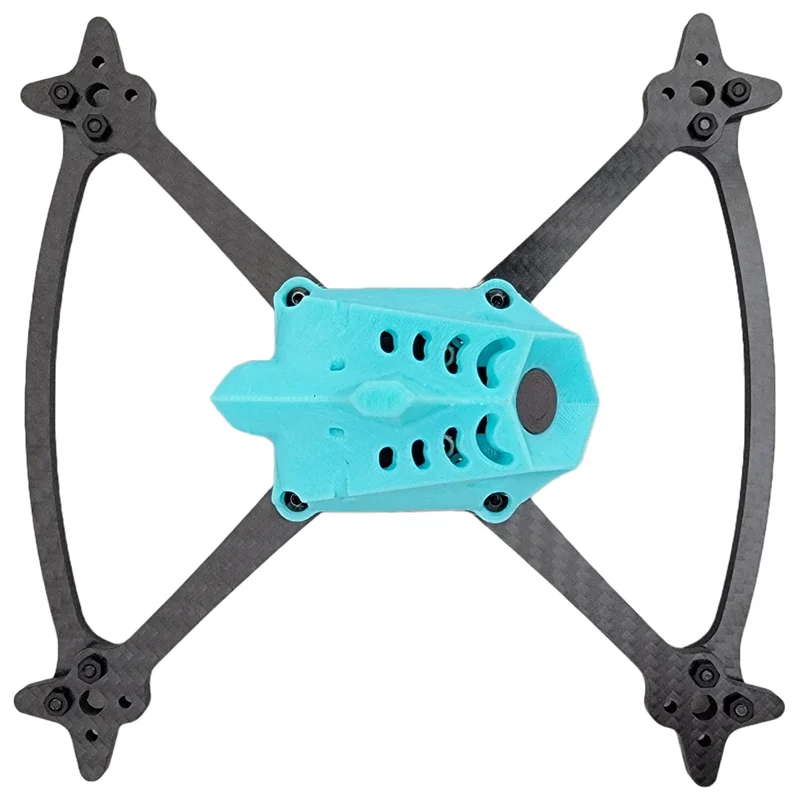

OpenRacer – 5″ Frame w/ TurtleModeFPV Pod Canopy

Description

OpenRacer – 5″ Racing Frame: Inspired by the Campfire CF1 frame, OpenRacer was designed by Racer, Betaflight Developer & YouTuber “Limon – Ivan Efimov” as an Open Source project with support from the FPV community…

Our customized version of the OpenRacer comes ready for punishing race environments with front and rear braces, XV “Fatty” arms & one of our own super tough, (Street League proven) fixed angle race pod canopies…

Known for unrivaled durability and exceptional performance on the track, OpenRacer frames are what we recommend and fly for 5″ racing…

Note: We currently offer pods for Foxeer PredatorNanoV5 and HDZero Nano90 camera variants… Not the gear you’re running TurtleModeFPV has designed and published 50+ open source race pod files to Thingiverse in support of the OpenRacer project in a wide variety of camera and angle options (See Additional Links Below)…

Included in frame kit:

– OpenRacer – Top Plate – (1x)
– OpenRacer – Bottom Plate – (1x)
– OpenRacer – Arms – (4x)
– OpenRacer – Font & Rear Braces – (2x)
– OpenRacer Hardware Kit – (1x)
– TurtleModeFPV Fixed Angle Race Pod – (1x)

Included in hardware kit:

– M3×25mm Button Head Screw – (4x) – FC Stack
– M3×16mm Flat Head Screw – (4x) – Outer Arms
– M3×12mm Flat Head Screw – (4x) – Inner Arms
– M3×12mm Button Head Screw – (8x) – Braces
– M3×8mm Button Head Screw – (8x) – Motors
– M3×6mm Button Head – (4x) – Pod Canopy
– S-M3-2 Self Clinching Nut – (8x) – Arms
– M3 Hex Nut – (8x) – FC Stack
– M3×10mm Knurled Standoffs – (4x) – Standoffs

Note: Hardware kit contains a mix of Grade 10.9 & 12.9 Hardware… We will be upgrading to 12.9 based on bulk availability…

Additional Links & Information:

Support the designers YouTube Channel //OpenRacer/OpenRacer

Connect with the OpenRacer community on Facebook /groups/640824090407985/?ref=share&mibextid=NSMWBT

Download TurtleModeFPV’s full line of OpenRacer/ HeavyMetal pods FREE on Thingiverse /turtlemodefpv/designs
