Description
Overview

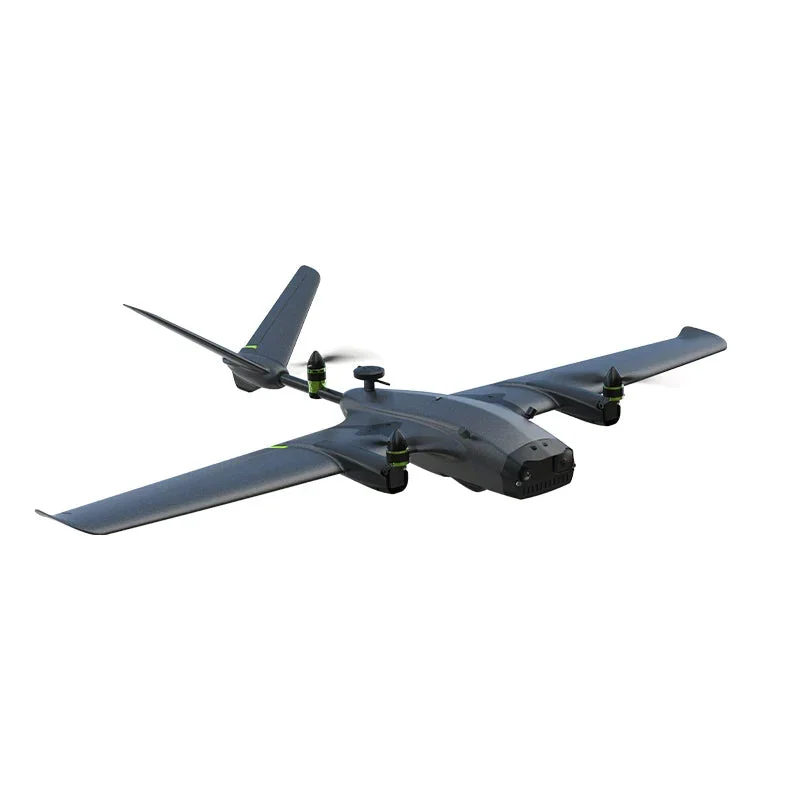

The OMPHOBBY ZMO V2 Tilt-Rotor VTOL FPV Drone is a high-performance tri-axis tilt-rotor aircraft designed for FPV enthusiasts and professional users. Featuring a 1200mm wingspan. industrial-grade EPP material. and a 6S 4400mAh battery. the ZMO V2 delivers exceptional speed. endurance. and modular expandability. Powered by the ZMO PRO flight controller and N-FLY system. it achieves a top speed of 150km/h. ultra-long range of 15km+. and low-latency 1080p/60fps real-time video transmission.
Key Specifications
| Specification | Detail |
|---|---|
| Model | ZMO |
| Aircraft Type | FPV / VTOL Tilt-Rotor |
| Wingspan | 1200mm |
| Fuselage Length | 788mm |
| Height | 168mm |
| Body Width | 360mm |
| Weight | 1435g |
| Propeller Size | 86R. 86L. 8*3.8 |
| Battery | 6S 4400mAh LiPo |
| Power | 2310 |
| Flight Controller | ZMO PRO |
| System | N-FLY |
| Material | Industrial EPP |
| Max Flight Speed | 150km/h |
| Cruise Speed | 57km/h |
| Flight Range | 50–60km+ |
| GPS Accuracy | ±2m |
| One-Touch Takeoff/Return | Yes |
| Auto Route Planning | Yes |
Core Features
✅ VTOL Vertical Takeoff and Landing
Tri-axis tilt-rotor design enables unrestricted takeoff and landing. ideal for complex terrain and tight areas.
✅ High-Speed & Long Range
Supports speeds up to 150km/h with 15km+ range. suitable for long-distance exploration. mapping. or FPV adventures.
✅ Versatile Flight Modes
-
FBWA: Stabilized manual control
-
Cruise Mode: Auto altitude/speed with direction control
-
Multi-Axis Stabilization & Position Hold: GPS + gyro for beginners
-
Aerobatic Mode: Full manual control for advanced maneuvers
✅ Enhanced Tilt Servo System
Patented direct-drive servo system provides high precision. minimal damping delay. and robust stability during transition flight.
✅ Multi-Camera Payload Support
Compatible with GoPro Hero 5/6. Insta360. multispectral cameras. and LiDAR. Payload capacity up to 400g via standard action camera mount.
✅ OSD Interface for Fixed-Wing
Customizable On-Screen Display with real-time flight data. adjustable layout. font styles. icons. and 36 telemetry metrics.
✅ Wide Protocol Compatibility
Supports Mavlink/MSP/MSPV1. All rights reserved.
