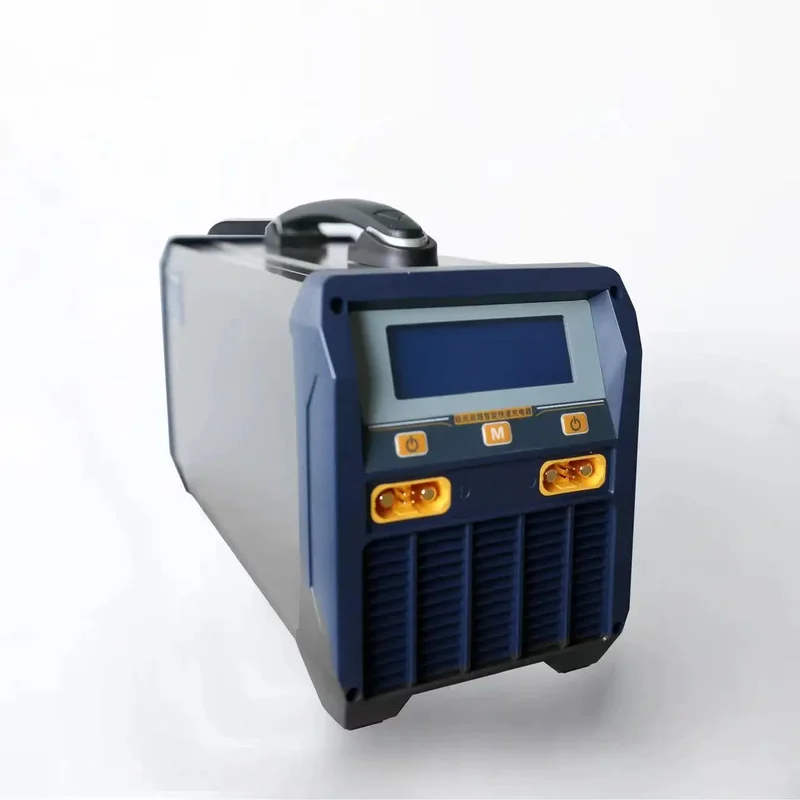

OKCELL L6055. L6025P. L6025 Battery Charger
Overview: The OKCELL series of intelligent quick chargers (L6055. L6025P. and L6025) are designed to provide fast. efficient charging for 12S. 13S. and 14S smart drone batteries. These chargers are engineered for high-power charging requirements. offering a reliable and safe charging solution for large-capacity drone batteries. making them perfect for agricultural. industrial. and high-performance drones.
OKCELL12S 13S 14S Drone Battery Chareger Key Specifications:
| Parameter | L6025 | L6025P | L6055 |
|---|---|---|---|
| Input Voltage | 110V-240V | 110V-240V | 110V-240V |
| Charging Current | 25A | 40A (Alternate charge) / 25A (Simultaneous charging) | 55A (Two ports charge in turn) |
| Equalizing Current | 550mA | 550mA | 550mA |
| Static Power Consumption | 310mA | 310mA | 310mA |
| Default Plug | AS150U | AS150U | AS150U |
| Number of Channels | 2 | 2 | 2 |
| Battery Type | 12-14S | 12-14S | 12-14S |
| Power Output | 2400W | 2400W | 2400W |
| Dimensions | 315x147x153mm | 315x147x153mm | 315x147x153mm |
| Weight | 5.56kg | 5.56kg | 5.56kg |
Additional Parameters (Applicable to All Models):
- Maximum Charging Current (Per Channel): 10A
- Maximum Charging Power (Per Channel): 500W
- Maximum Output Voltage (Per Channel): 50.4V
- Maximum Equilibrium Current: 650mA
- Maximum Static Power Consumption: 320mA
- Display Mode: Segmented Display
- Supported Battery Strings: 12S
- Operating Temperature: 0°C to 40°C
OKCELL L6055. L6025P. L6025 Main Features:
-
Dual-channel
