Description
NIDICI Affordable Series Motor, is designed to provide high-quality performance at an economical price. This series combines cost-effectiveness with reliable power, making it an excellent choice for hobbyists and enthusiasts who seek value without compromising on quality.
Specifications
KV: 1250KV
Weight (included wire): 60.4g
Dimension: Ф33.55*24.15mm
Interphase Resistance: 65mΩ
Input Volts: 24V
Peak Current: 49.23A
Max Watt: 1147.1W
Mounting Holes: 19*19 φ3mm
Rotor Specifications: Segmented bell
Shaft Diameter: 5mm
Shaft Protruding Length: 15.15mm
Lead: 260mm/18AWG
Magnet: N52H Curved
Configuration: 12N14P
Bearing Specification: φ11*5*5
Winding: Single Strand copper winding
Packing List

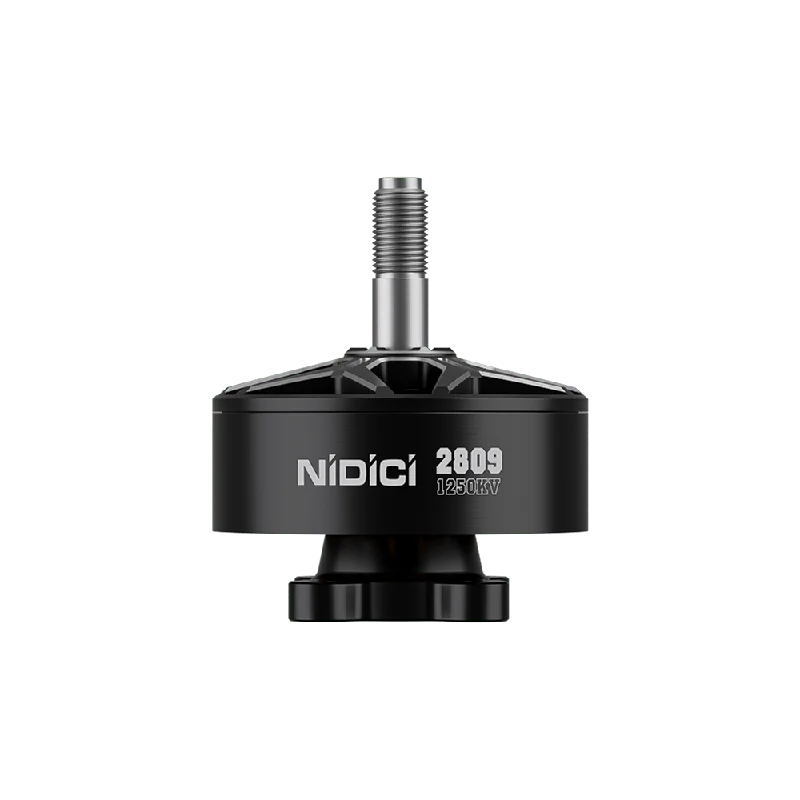

1 x NIDICI 2809 1250KV Brushless Motor
4 xM3*10 screws
1 x M5 Flange Nut
