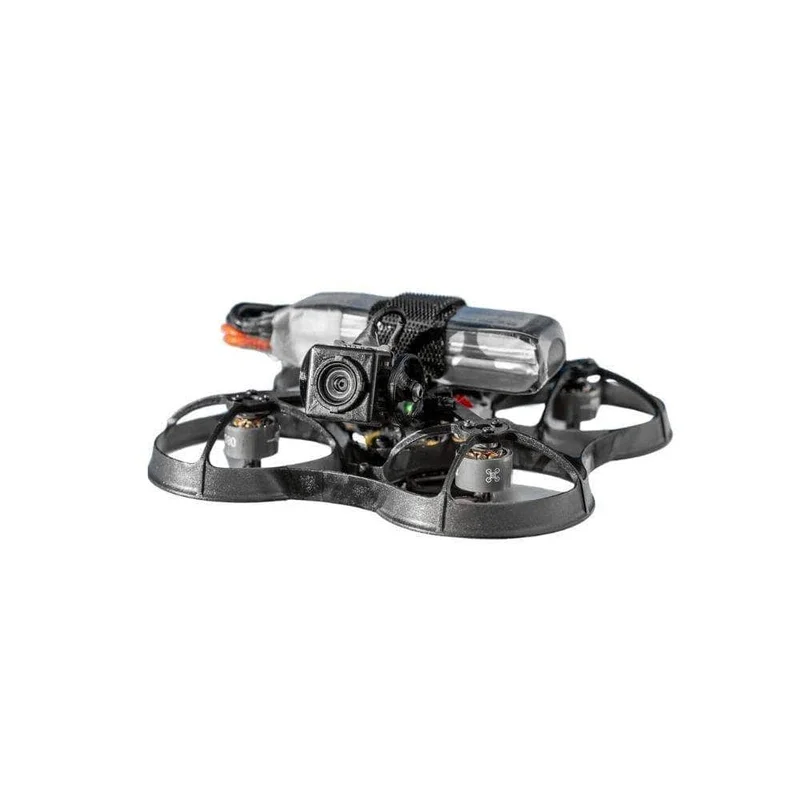

NewBeeDrone AcroBee75 Pusher Drone HD w/ DJI O4 – ELRS 2.4GHz

Description

The NewBeeDrone AcroBee75 Pusher Drone HD with DJI O4 has arrived at RDQ and is ready for ultimate whooping! Featuring the advanced BeeBrain HD G4 FC with built in ELRS, this little package is ready for all types of flying.

Check out our other pre-built quads, as well as the rest of our NewBeeDrone selection.

Note: Battery is NOT included. This product has been updated to include a Flywoo O4 camera mount.

Features

• Optimized Center of Gravity
• High-Performance Motors
• DJI O4 HD Video System
• User-Friendly & Reliable
• Inverted Pusher Design
• Lightweight & Durable

Specifications

• Flight Controller: BeeBrain HD G4 Flight Controller ExpressLRS (ELRS) 2.4GHz
• Recommended Battery: 2S 7.6V 450mAh to 850mAh with XT30 Plug
• Motors: Flow 0804 14,000KV Double Ball Bearing Brushless Motor
• Propellers: Azi (Tri-Blade) Micro Propellers 40mm – 1.0mm Shaft
• Frame: Cockroach75 Brushless Frame
• Total Weight (without battery): 44g
• HD VTX & Camera: DJI O4
• Drone Size: 75mm

FLIGHT CONTROLLER

• Flight Controller Weight: 7.4g (including antenna and XT30 battery connector)
• BeeBrain BLV4 HD G4 Flight Controller ELRS 2.4G Specifications
• Receiver Antenna: 1x BeeT-Antenna, 1x 2.4G receiver antenna
• Flight Time: ~3:00 min with a Tattu 450mAh 2S battery (at 7V)
• Receiver: NBD ExpressLRS 3.0 Diversity (non-SPI)
• Flight Controller Mounting Holes: 25.5 x 25.5mm
• ESC Firmware: Z-H-40 – Bluejay 0.19.2 48kHz
• ESC Specifications: 1-channel 20A ESC
• Flight Controller Size: 29 x 29 x 7.6mm
• MCU: STM32G474
• Battery Input: 1-2S
• BEC:
  • 10V 2A for DJI O3 (under 2S power only)
  • 5V 2A
• UART Ports:
  • UART2: TX & RX for ExpressLRS 3.0 receiver
  • UART1: Free
  • UART3: Free
  • UART4: Free

• Links
  3D File

Includes

• 1x NewBeeDrone AcroBee75 Pusher Drone HD w/ DJI O4  – ELRS 2.4GHz
• 4x Azi 40mm Propellers
• 1x Battery Strap
