Description
Overview
Introducing the NewBeeDrone 0802 Brushless FPV Motor 14000KV – Unibell Espresso Edition. a premium second-generation motor designed specifically for 2S whoop drones. Featuring an integrated Unibell design. this motor eliminates top-mounted C-clips. ensuring superior dynamic balance and durability. Built for serious racers and freestyle pilots. the Espresso Edition combines smooth power delivery. structural integrity. and ultra-lightweight construction.
With a true 14000KV rating. it delivers high-efficiency performance at 2S voltages (7.4V–8.4V). optimized for indoor racing. cinematic flights. or extended cruise sessions. Whether you’re building a quiet HD whoop or a long-range micro drone. these motors provide excellent efficiency. torque. and build quality.
Key Features
-
0802 Brushless FPV Motor with precision 14000KV output
-
Unibell construction with no external C-clips – stronger. better balance
-
Double-step 1mm shaft for improved prop retention and durability
-
Rated for 2S (7.4V–8.4V) – perfect for high-efficiency cruising and cinematic whoops
-
Includes JST-1.0 connector (installed) and extra JST-1.25 wire set for broader FC compatibility
-
50mm 30AWG silicone wire for flexible mounting
-
Weight: 2.08g (with wire and plug)
-
Recommended battery: Nitro Nectar Gold 2S or equivalent high-discharge packs
-
Recommended props: 31mm–41mm tri-blade (e.g.. AZI 3B)
Technical Specifications
| Parameter | Value |
|---|---|
| Motor Size | 0802 |
| KV Rating | 14000KV (actual ~14786KV) |
| Voltage | 2S (7.4V–8.4V) |
| Max Power | 36.8W |
| Max Current | 4.6A |
| Shaft Type | 1mm double-step (1mm/1.5mm) |
| Shaft Length | 5mm |
| Motor Dimensions | Ø11.5mm x 13.6mm |
| Prop Compatibility | 31–41mm (recommended AZI 3-blade) |
| Mounting Pattern | 3 × M1.4 (Φ6.6mm) |
| Lead Wires | 30AWG × 50mm |
| Weight | 2.08g (with wire & plug) |
⚡ Performance Snapshot (Based on 8V Bench Test with AZI 3B Prop)
-
Peak Thrust: 55.4g
-
Max Input Power: 36.8W
-
Peak Efficiency: 1.59g/W
-
Best Efficiency Range: 2.0A–3.0A
📦 What’s Included
-

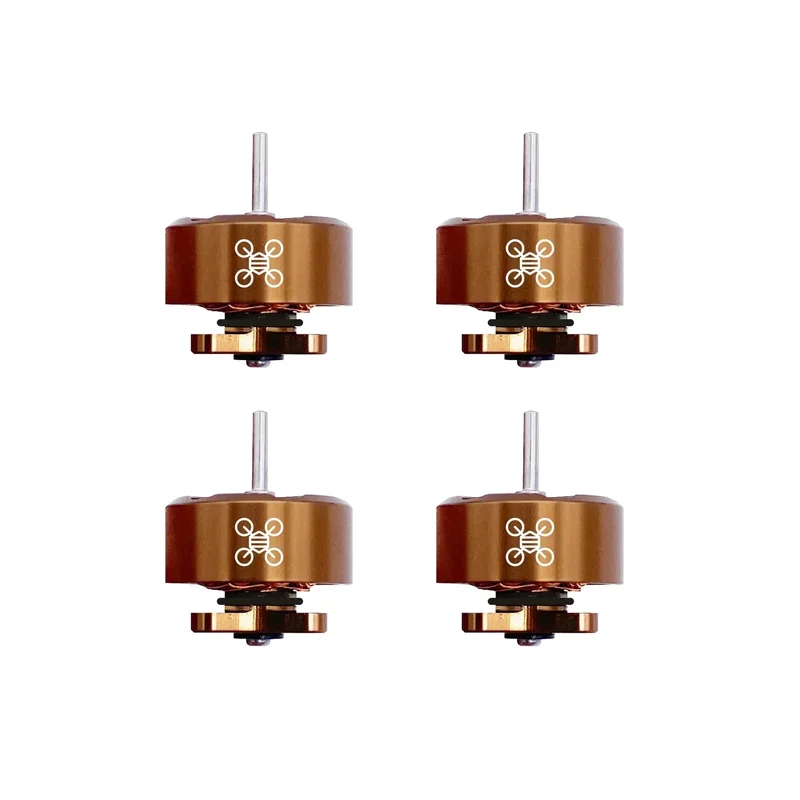

4 × NewBeeDrone 0802 14000KV Unibell Espresso Brushless Motors
-
4 × Extra JST-1.25 connector cables
-
1 × Mounting hardware set
NewBeeDrone 0802 Brushless FPV Motor: 14786KV. 346mΩ. 8.4mm stator diameter. 2mm height. 9 slots. 12 poles. Max 4.6A. 36.8W. 8.4V. Dimensions: 11.5×13.6mm. Performance for AZI 1.0-3B propeller.
