Description

RadioMaster ZORRO SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Recommend Age: 12+y

Origin: Mainland China

Model Number: RadioMaster ZORRO

Material: Composite Material

Brand Name: abay

Brand Name: Hanma Store

remote control kit without battery Batteries need to be purchased separately Batteries AliExpress cannot ship
Specs:
Physical dimensions:170*159*108mm
Weight:350 grams
Operating frequency:2.400GHz-2.480GHz
Internal RF Options:ELRS
Supported protocols :ELRS
RF power:Up to 250mw ( CE & FCC Versions will be available)
Antenna gain:Folding 2db
Operational current:[email protected]
Operational voltage:6.6-8.4v DC
Control distance: Receiver and Power Output dependant
Operating system:OpenTX / EdgeTX Compatible
Control channels:Maximum 16 (Rx dependent)
Display :128*64 Monochrome LCD
Battery :2 x 18350 (Not included)
Charging :Built in USB-C Charging
Gimbal:Hall-effect
Module bay :Nano size (Compatible with TBS Nano Crossfire / Nano Tracer / IRC Ghost)
Firmware Upgrade method:Via USB or SD card

Starter set includes:
Zorro ELRS Radio Control
2x RP1 Full range 2.4ghz ELRS Receivers with T antenna
1x RP2 Compact 2.4ghz Receiver with Built in antenna

Zorro CC2SOO 4in1 Radio Control Starter set includes 2x RPI Full range 2.4ghz ELRS TBS Nano Crossfire Module Receivers with antenna Ix RPZ Compact 2.4gnz Receiver with Built-in antenna multi-Battery .

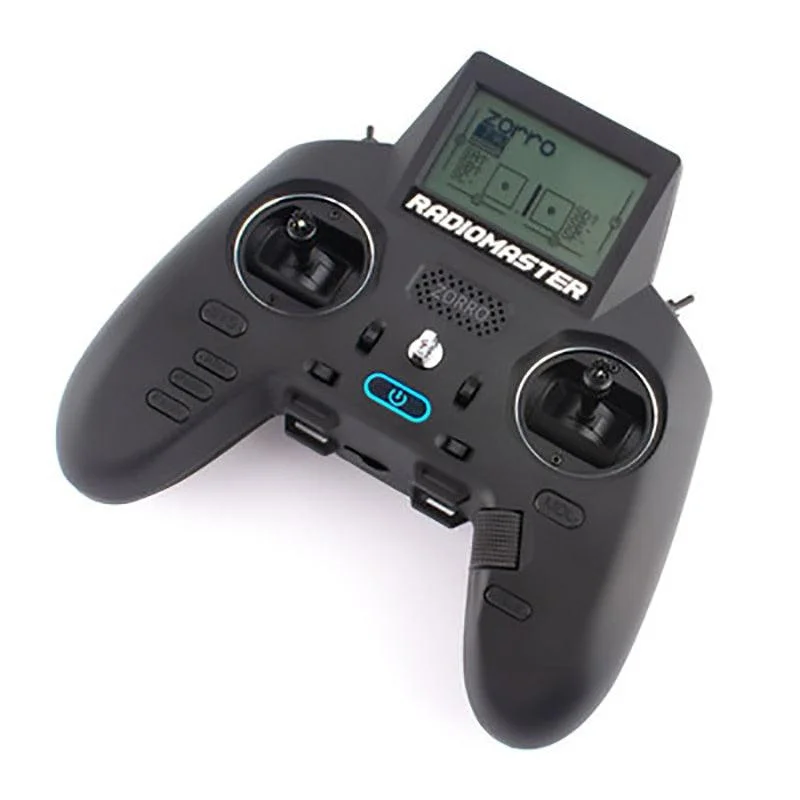

Introducing the Radiomaster Zorro. a compact class-leader that supports OpenTX and features oversized adjustable hall gimbals. designed for use with 2S power supply and TBS iELRS protocol.

The Radiomaster Zorro high-frequency hall handle radio control system supports 42 different RF configurations. comes with a CC2500 module. and is designed for use with the Cadeo WT-2000.

Includes SX128U (ELRS) MasterFire Combo. featuring an oversized LCD screen with adjustable brightness for optimal visibility in any environment. The Zorro 7.6V/6h28 SD-383B F SCT RadioMaster comes with this starter set.

This radio control system features a spring-tension self-centering throttle adjustment. allowing for seamless switching between modes 1 and 2 without requiring disassembly. The Hall-effect gimbal stick also has adjustable travel.

The radio control features a high-frequency hall handle design with comfortable and easy-to-grip non-slip soft rubber or leather grips. as well as 8 x 18350 battery compartments.

Supports USB-C direct charging 3 TFIE Tonoc REOOD5 4MzEKJaniea 4vgs AdZ Norn #=LS010iob

Auxiliary button external module designed for use with Crossfire. ExpressLRS (ELRS). and other compatible systems.
