Maverick Ion MSRS-249 2.4GHz 2-in-1 Integrated Brushed ESC & Receiver

Description

ESC Overview:

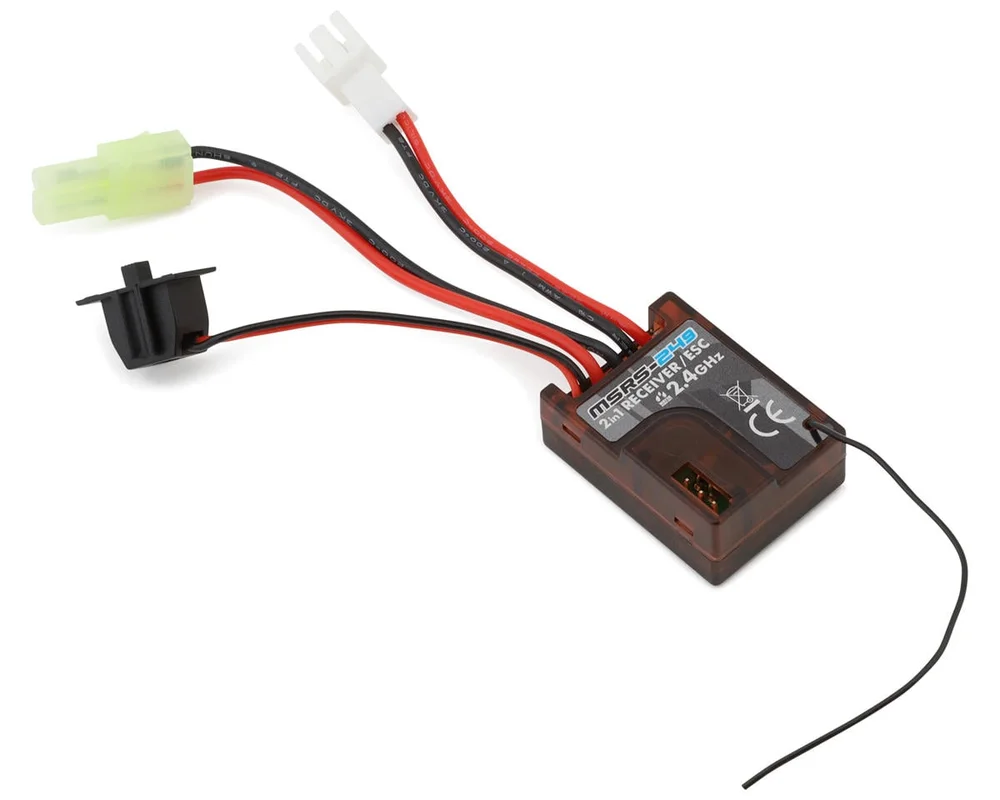

Maverick Ion MSRS-249 2.4GHz Two-in-One Brushed ESC and Receiver. This is a replacement receiver intended for use on the Maverick 1/18 Ion platforms. Integrating the receiver and electronic speed controller (ESC) into a single unit, it offers a compact and efficient solution for smaller RC models where space is limited. It supports two-channel control that manages both steering and throttle and operates on a 2.4GHz frequency to provide reliable and precise control.

Features:

• Combines the receiver and ESC into one unit, simplifying the wiring and installation process
• 2.4GHz frequency band provides a reliable and interference-free signal for precise control
• Designed for use with brushless motors, offering efficient and powerful performance
• Integrated design is perfect for conserving space and reducing weight
• Pre-soldered connectors offer ease of installation
• Two-channels for steering and throttle that allow precise control
• Water resistant design is suitable for off-road small-scale vehicles

Specifications:

• Suggested Application: 1/18
• Type: Brushed
• Input Voltage: 6.0-8.4V
• Continuous Current: 20A
• Dimensions: 1.38x1x0.55in (35.1×25.3x14mm)
• Weight: 0.26oz (7.4g)
• Motor Limits: 20T 370-Brushed Motor
• BEC Voltage: 6V Fixed
• Motor Connector: JST-PH2.0
• Battery Connector: Mini Tamiya

Includes:

• (1) Maverick Ion MSRS-249 2.4GHz 2-in-1 Brushed ESC and Receiver

This product was added to our catalog on June 20, 2024
