Matek Servo PDB With BEC 5.5-36V to 5-7.2V

Description

Matek’s Servo PDB provides clean voltage regulation for servos and other accessories that need 5-8.2V.  With 6 PWM outputs, this little PDB can be connected to flight controllers that do not have actual PWM outputs or BEC for servos.  This is a must-have for any plane with servos as it is critical they are powered with clean and dedicated power.

Specifications:

• 5.5V to 36V Operating Input Range
• Vx for servos,  5V, 6V, 7.2V, 8.2V Adj. Default is 5V.
• 4A Continuous load current, 7A Burst
• Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage
• Output Short-circuit tolerant (3 seconds)
• No protection for reversed input polarity
• Pins distance: 2.54mm

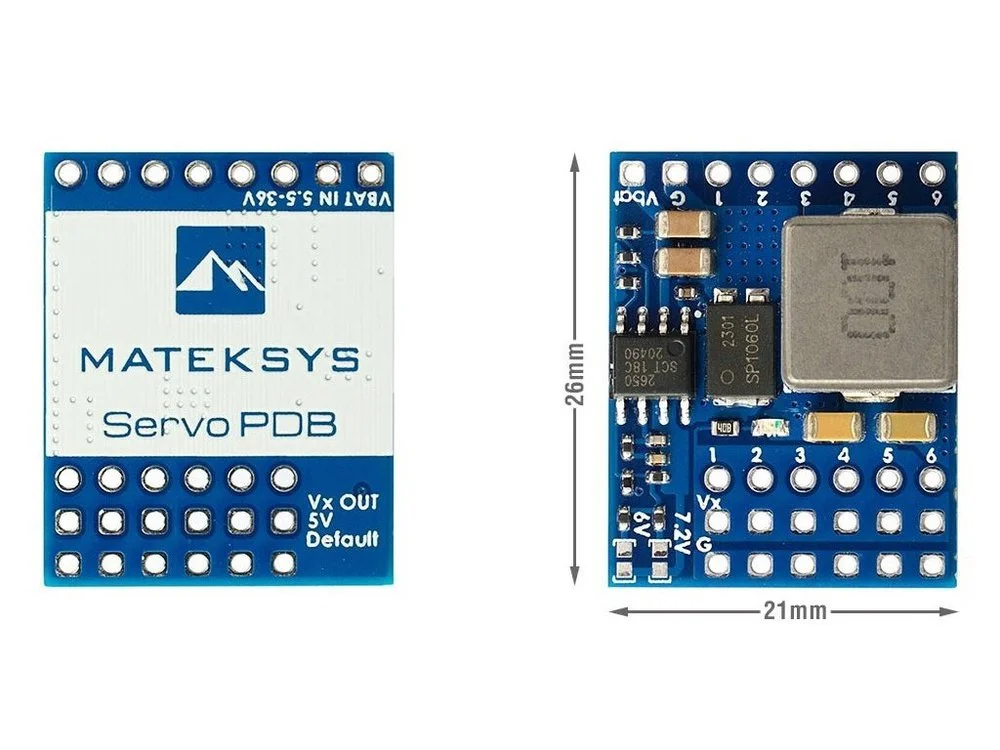

• Size & Weight: 26 x 21 x 5mm, 4g
• Packing: 1x SVPDB-8S,  Dupont 2.54mm pins

Applications:

• Flight controllers without dedicated BEC for servos
• Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane

Wiring Diragram:

Includes:
1x Matek Servo PDB With BEC 5.5-36V to 5-8.2V
Dupont 2.54mm Pins
