Description

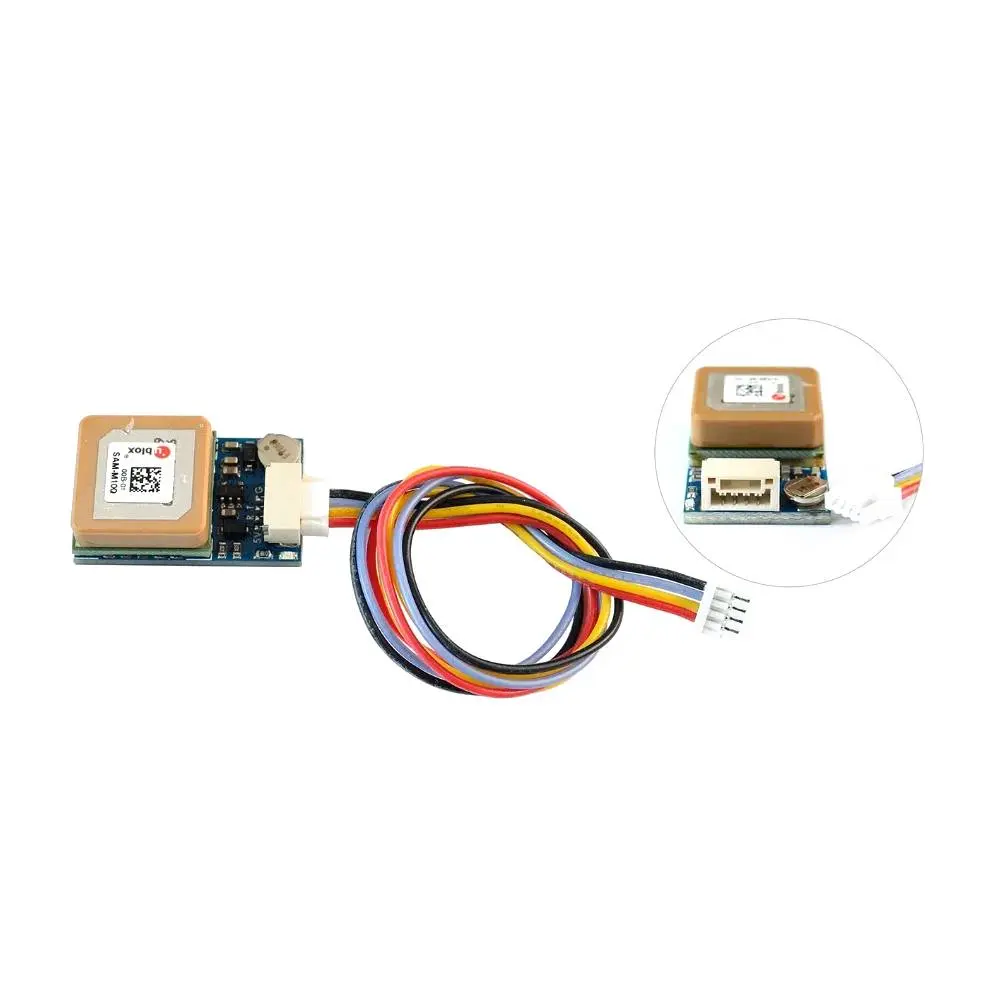

Matek GNSS, SAM-M10Q

Achieve exceptionally fast, accurate, and reliable positioning for your FPV drone with the Matek SAM-M10Q GNSS module. Built on the cutting-edge u-blox M10 platform, this module provides superior sensitivity and acquisition time by tracking up to four satellite constellations simultaneously. It’s a top-tier drone part for pilots who need a rock-solid GPS lock for long-range flight, autonomous missions, or a dependable Return-to-Home safety feature.

Fast & Reliable Satellite Lock

The standout feature of the SAM-M10Q is its ability to concurrently receive signals from GPS, GLONASS, Galileo, and BeiDou. By tracking a higher number of visible satellites, it achieves a 3D lock significantly faster and maintains a more robust and accurate position, especially in challenging environments like deep urban canyons or mountainous terrain. This makes it a perfect component for any FPV drone kit where GPS performance is critical.

Advanced u-blox M10 Technology

This module uses the 10th generation u-blox M10 engine with Super-S (Super-Signal) technology, which offers great RF sensitivity and improves dynamic position accuracy. It is paired with a high-gain 15x15mm patch antenna that has been factory-tuned for the best possible performance, providing an excellent balance of signal reception and compact size.

Seamless Flight Controller Integration

The SAM-M10Q uses the bidirectional UBX protocol, which allows your flight controller to automatically configure the module’s settings on every power-up. This means there is no need to manually configure settings like baud rate in u-center. It connects easily to your flight controller via the included JST-GH cable, providing a clean and simple installation.

Important Notes & Compatibility

• This module is a pure GNSS receiver and does not have a built-in compass (magnetometer).
• It requires modern flight controller firmware (e.g., INAV 5.0+, Betaflight 4.3+, ArduPilot 4.3+).
• The fine scratches on the ceramic antenna are a normal result of the factory tuning process and do not indicate a defect.

Specifications

• Brand: Matek
• GNSS: u-blox M10 Series (GPS, GLONASS, Galileo, BeiDou)
• Input Voltage: 4V-9V DC
• Power Consumption: 10mA
• Protocol: UBX or NMEA
• Update Rate: Up to 5Hz (UBX) or 1Hz (NMEA)
• Dimensions: 26mm x 16mm x 8mm
• Weight: 7.5g

What’s in the Box?

• 1x Matek SAM-M10Q GNSS Module
• 1x JST-GH-4P to JST-GH-4P Cable (20cm)
