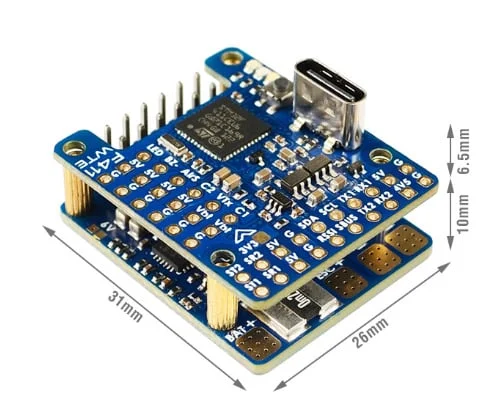

Matek F411-WTE Flight Controller

Meet the Matek F411-WTE, an ultra-compact, all-in-one flight controller designed specifically for FPV wings and fixed-wing aircraft. This powerful board integrates a flight controller, OSD, PDB, current sensor, and multiple BECs onto a single tiny board with a 22x22mm mounting pattern. It’s the perfect, feature-rich brain for small flying wings, nano long-range planes, or any FPV drone kit where space and weight are critical.

All-in-One for Compact Wing Builds

The F411-WTE simplifies your build by combining all essential electronics into one package. This reduces wiring complexity and saves valuable space, making it ideal for smaller fixed-wing FPV drones. It’s optimized for INAV flight firmware, providing reliable performance and access to key navigation features.

Powerful & Dedicated Servo Power

A standout feature of this flight controller is its powerful, dedicated BEC for servos. It provides a robust 5A of current, switchable between 5V and 6V, to reliably power your control surfaces without causing brownouts on the main flight processor. The board also includes a switchable Vbat output, allowing you to turn your VTX on and off from your transmitter—a huge convenience for preventing overheating on the ground.

Modern Sensors for Stable Flight

The F411-WT_E is equipped with modern, high-performance sensors. It features a reliable STM32F411 MCU, a clean BMI270 gyro for smooth flight, and a precision SPL06-001 barometer for accurate altitude hold. This combination provides the stable data needed for confident cruising and reliable return-to-home functionality.

Specifications

• Brand: Matek
• Model: F411-WTE
• MCU: STM32F411CEU6 @ 100MHz
• Gyro/IMU: BMI270
• Barometer: SPL06-001
• OSD: AT7456E
• Input Voltage: 6V – 30V (2-6S LiPo)
• PWM Outputs: 6
• UARTs: 2
• Servo BEC: 5V / 6V option @ 5A
• FC BEC: 5V @ 1.5A
• Current Sensor: 132A Max
• Mounting: 22mm x 22mm (M2)

What’s in the Box?

• 1x Matek F411-WTE Flight Controller
• 1x Set of Header Pins
