Description

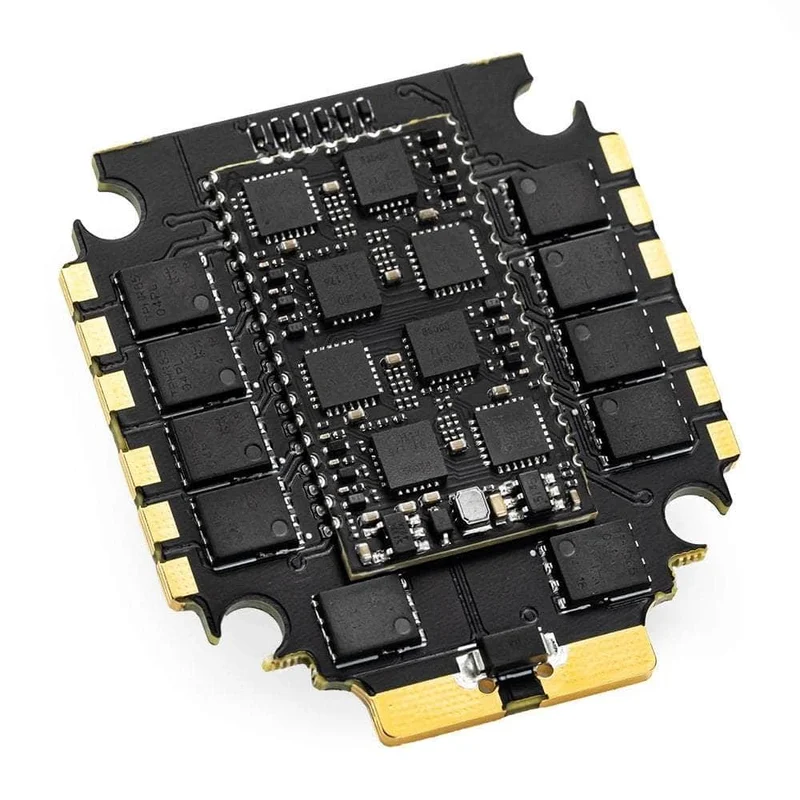

Lumenier Siege G071 55A 3-6S 4-in-1 AM32 NDAA ESC has arrived. Built for 3S to 6S LiPo batteries, this powerful ESC works with Betaflight and KISS systems. Delivering a constant current of 55A and a burst current of 65A, it provides ideal power for racing or freestyle. Ideal for builders and pilots seeking unmatched reliability and precision, this 4-in-1 ESC is designed to level up your drone!
Make sure to check out our other ESCs and our Lumenier product selection!
Features
- Motor Protocol Support – Servo PWM and DSHOT 300/600
- Pinout – VBAT/GND/CURR/TELEM/M1/M2/M3/M4
- Firmware upgradable via Betaflight passthrough
- Betaflight and KISS Standard ESC Telemetry
- Variable PWM Frequency
- Sinusoidal Startup Mode
- Stuck Motor Protection
- Bi-directional DSHOT
- AM32 Firmware
- NDAA (Designed in the USA)
Specifications
- Mounting holes: 30.5mm x 30.5mm
- Input: 3S to 6S battery voltage
- Constant Current: 55Amp
- Dimensions: 45x39x5mm
- Burst Current: 65A
- Weight: 14g
Links
- Lumenier Siege 55A ESC Manual
- Download the latest AM32 manual and configurator here
- Download the original AM32 .hex file for the Lumenier SIEGE ESC here
Includes
- 1x Lumenier Siege G071 55A 2-6S 4-in-1 AM32 ESC – NDAA
- 1x 25mm 8 pin JST-SH Cable
- 1x 35V 1000uf Capacitor
- 4x M3 Rubber Grommets
