Description

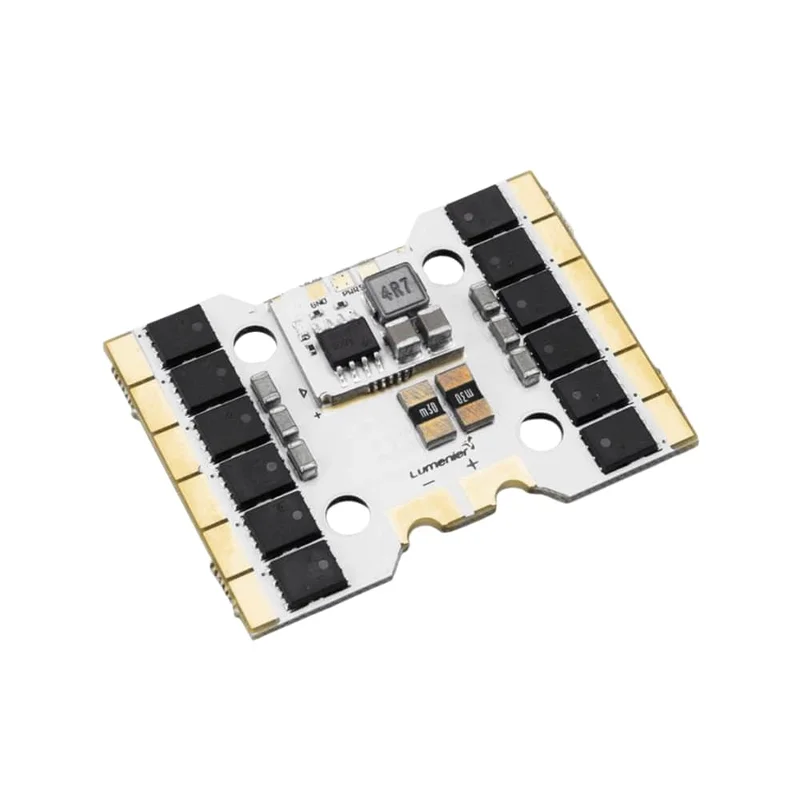

The Lumenier Mini Razor Pro AM32 ESC features a future-proof, powerful F3 processor. The 32-bit architecture enables the ESC to run at incredible speeds, delivering better performance, faster input signals, and lower latency than older 8-bit ESCs. This ESC also features a live telemetry connection for more advanced flight controllers and a top-of-the-line current sensor.
Features
- Supports DSHOT 1200, Proshot, Oneshot125 (125-250us), Oneshot42(41.7-83.3us) and Multishot (5-25us). Auto-detection.
- Synchronous rectification technology adds efficiency, damped light
- Adaptive timing, compatible with a wide range of motors and Kv
- Oversized motor pads for easy installation and maintenance
- Powerful regenerative braking / active braking.
- 2-6s LiPo battery compatible
- F3 MCU running at 108MHz
- AM32 Firmware
Specifications
- 8-pin Connector Pinout: VBAT, Ground, Current ADC, TLM, Motor 1, Motor 2, Motor 3, Motor 4
- Mounting holes: 20×20 M3
- Dimensions: 33x46x5mm
- Constant: 45 Amps
- Signal Wire: 7cm
- Firmware: AM32
- Input: 2-6s LiPo
- Burst: 60 Amps
- Weight: 12.5g
Links
AM32
- AM32.ca Configurator
- AM32 Github
- *Please remember to always use AM32.ca to modify ESC settings to match the motor poles and KV prior to first flight. Motor pole and KV match is required for all AM32 ESCs.
Includes
- 1x Lumenier Mini Razor Pro 45A 2-6S AM32 4-in-1 ESC
- 1x 8-Pin Micro JST-SH Cable – 7 cm
- 4x M3 Rubber Grommets
- 4x M3 Rubber O-rings
