Description

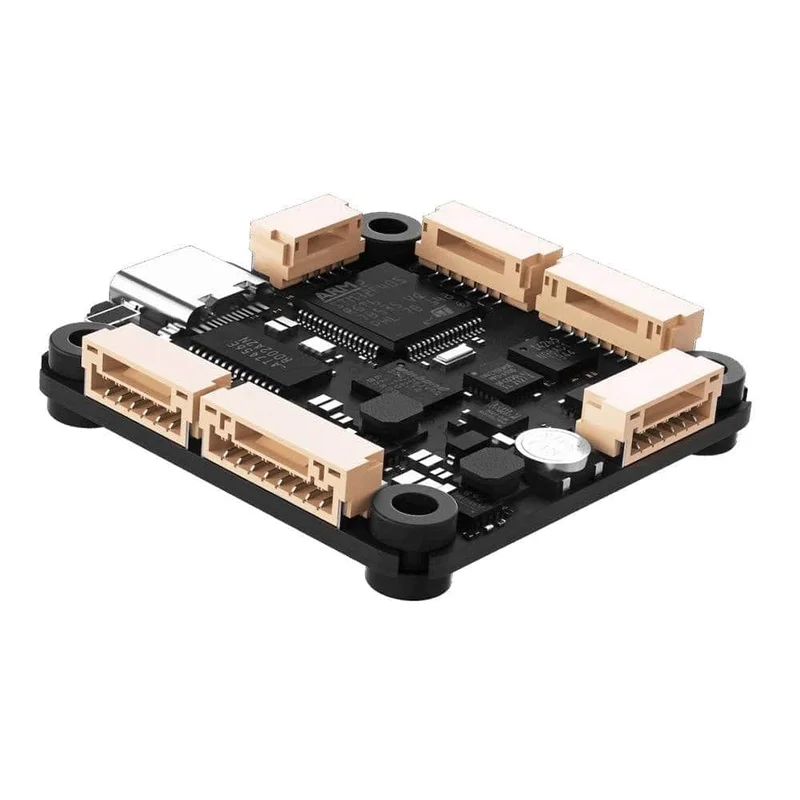

The Lumenier LUX H743 – NDAA Flight Controller features some of the latest sensors in drone technology, including the next-generation InvenSense ICM-45686 Gyro/Accelerometer, Infineon DPS368 barometer, and STMicroelectronics LIS2MDL magnetometer. Additionally, the LUX H743–NDAA features several differentiating characteristics, including a camera feed switch that allows toggling between two independent video streams.
Make sure to check out our other Flight Controllers and our Lumenier product selection!
Features
- Dual Gyro/Accelerometer Sensors with Synchronization Clock Signal and Independent Power Supplies
- Supported Firmware – Betaflight, INAV, Ardupilot, and PX4
- 7 UART Ports, Including 2 UARTs with Flow Control
- Internal Magnetometer
- NDAA Compliant
- LED supported
Specifications
- Input Voltage: 3S to 8S
- MCU: ST STM32H743, ARM® Cortex®- M7, 480MHz, 1MB RAM, 2MB Flash
- Gyro/Accelerometer #1: Invensense ICM-45686
- Gyro/Accelerometer #2: Invensense ICM-42688-P
- Barometer: Infineon DPS368
- Magnetometer: STMicroelectronics LIS2MDL
- Flash Storage: Windbond W25Q128JV (128Mbit)
- OSD: AT7456E
- Size: 37.5mm x 37.5mm
- Mounting holes: 30.5mm x 30.5mm
- External Sensors: I2C Ports
- CANbus
