Description
Ghost is a 2.4GHz Radio Control system for R/C Model Control, with a focus on the FPV community.
Designed for both reliable control at extreme range, and extremely low latency with best-in-class frame rate for the Race circuit.
Specifications:
- Frequency Range : 2406 – 2479MHz
- Modulation: Chirp Spread Spectrum + Adaptive FHSS
- Binding: Bidirectional with confirmation and protocol negociation
- RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
- Uplink Tx Power: 16uW – 350mW (+/- 0.5dB) 3
- Frame Rate: 250Hz (purerace), 166Hz (race), 62Hz (normal), 15Hz (long range)
- Format: Standard ‘Lite’ Module:, tested with FrSky XLite™, andFrSky X9 Lite radios, a jumper T-Lite
- Serial Formats: SBus, GHST, Auto-sense
- OpenTx support: 2.3.11 release, or ‘high performance’ synced version of 2.3.11
- Firmware: USB Upgradable(with OTA updates for receivers)
- Power Supply: 6V-20V, 1.75W @ 350mW, ~250mA at 7.4V
Includes:

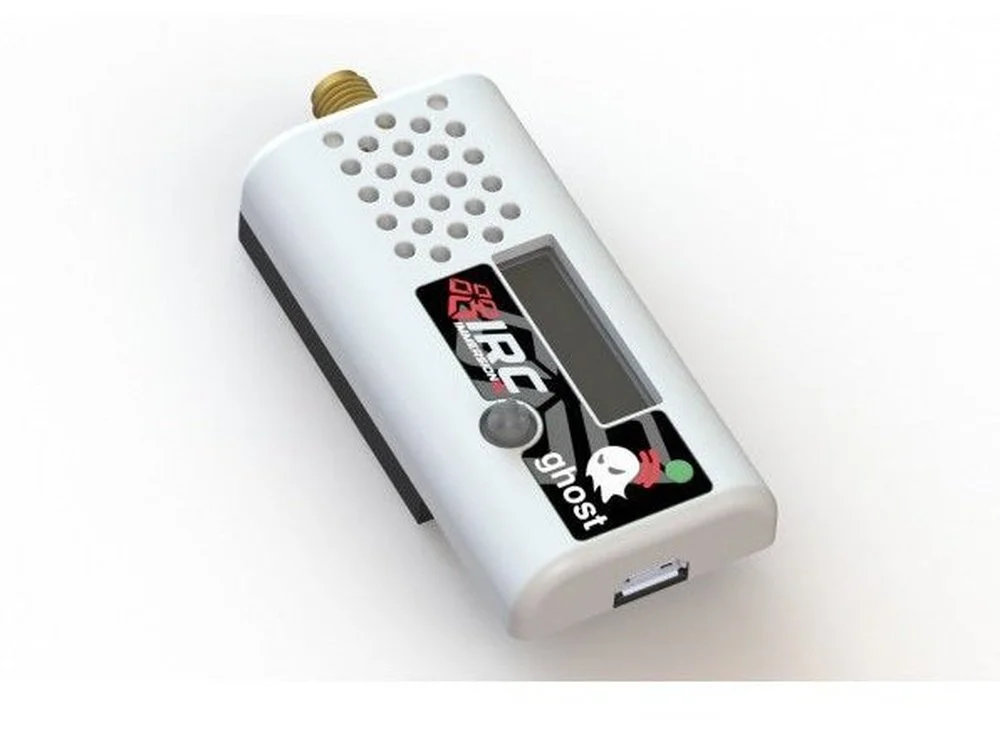

1x Immersion RC Ghost Lite Tx Module
1x Antenna
