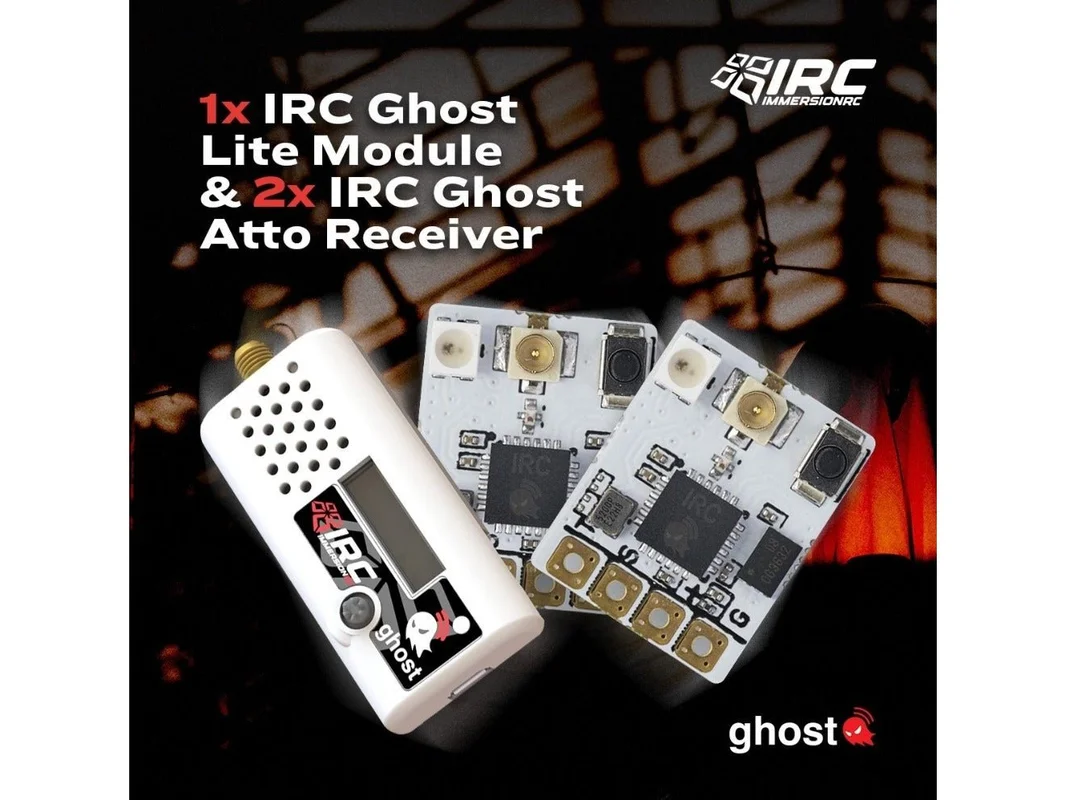

Limited Halloween bundle, which includes the Immersion RC Ghost Lite TX Module + 2 Ghost ATTO Receivers at a tremendous price.
Ghost is a 2.4GHz Radio Control system for R/C Model Control, with a focus on the FPV community.
Designed for both reliable control at extreme range, and extremely low latency with best-in-class frame rate for the Race circuit.
Specifications:
- Frequency Range: 2406 – 2479MHz
- Modulation: Chirp Spread Spectrum + Adaptive FHSS
- Binding: Bidirectional with confirmation and protocol negotiation
- RF Profiles: Race, Pure Race, ‘Normal’, and Long Range, more to come
Lite Module Transmitter Specifications
- Uplink Tx Power: 16uW – 350mW (+/- 0.5dB) 3
- Frame Rate: 250Hz (purerace), 166Hz (race), 62Hz (normal), 15Hz (long range)
- Format: Standard ‘Lite’ Module:, tested with FrSky XLite™, andFrSky X9 Lite radios
- Serial Formats: SBus, GHST, Auto-sense
- OpenTx support: 2.3.11 release, or ‘high performance’ synced version of 2.3.11
- Firmware: USB Upgradable(with OTA updates for receivers)
- Power Supply: 6V-20V, 1.75W @ 350mW, ~250mA at 7.4V
ATTO Receiver Specifications
- Downlink Tx Power: +13dBm
- Sensitivity: -117dBm in Long Range mode
- Serial Formats: GHST, SBus, SBus-Fast (200k) , SRXL-2 (400k), SBus Inverted
- Firmware: Over-the-air (OTA) upgradable
- Power Supply: 5V recommended, as low as 3.3V tolerated
- VTX control: Tramp control from ‘T’pin on Rx, regardless of selected serial format
- Dimensions: 14.8mm x 11.5mm, 0.6g (w/o antenna)
Includes:
1x Immersion RC Ghost Lite TX Module
2x Tx Antennas (2.4GHz dipoles)
2x Ghost Atto Receivers
2x Ghost qT Antennas with lockable ‘U.FL’ connectors
2x Sets of connecting wires
Download Manual
