Description
Overview

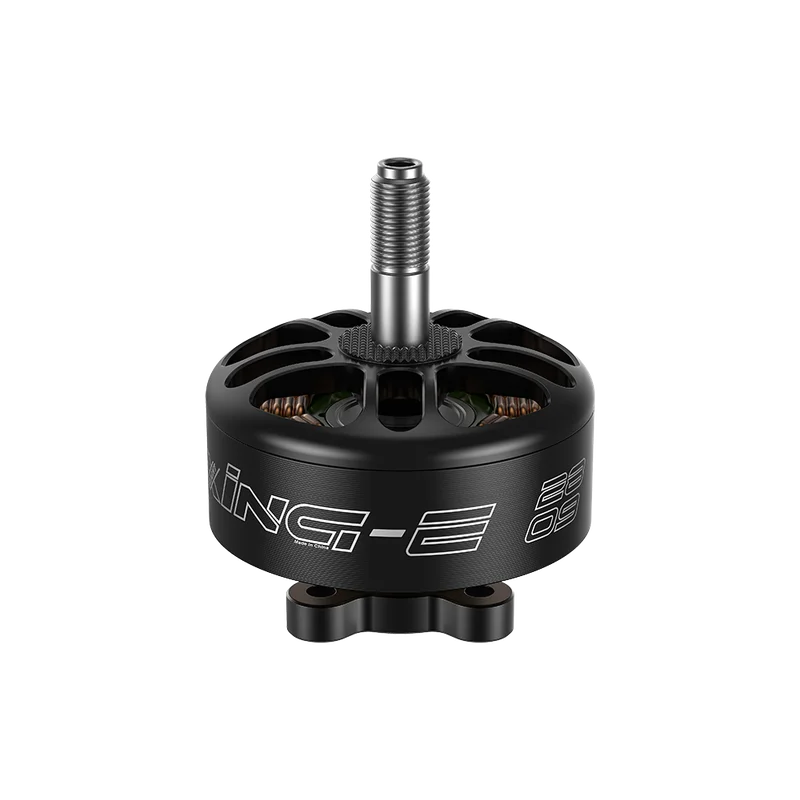

The iFlight XING-E 2809 motor is engineered for smooth. efficient performance in cinematic FPV drones and long-range freestyle builds. Available in 800KV and 1250KV versions. this motor supports 6S LiPo setups. delivering up to 1147.1W of power and 2933g of thrust. Its 5mm steel shaft. N52H curved magnets. segmented bell structure. and single-strand copper winding make it a reliable. budget-friendly powerhouse for 7–8 inch prop drones. Perfect for pilots who demand stable performance without compromising cost.
Key Features
-
KV Options: 800KV / 1250KV
-
Max Power: 610.3W (800KV) / 1147.1W (1250KV)
-
Peak Current: 25.63A (800KV) / 49.23A (1250KV)
-
Steel Shaft: High-strength 5mm shaft with 15.5mm protruding length
-
Magnet Type: N52H High-temperature curved magnets
-
Mounting Pattern: Standard 19x19mm – Ø3mm
-
Winding: Single-strand copper
-
Change Notice: Screw size updated to M3x11mm on May 5. 2024
Specifications
| Parameter | 800KV Version | 1250KV Version |
|---|---|---|
| Input Voltage | 24V (6S) | 24V (6S) |
| Max Current | 25.63A | 49.23A |
| Max Power | 610.3W | 1147.1W |
| Weight (incl. wire) | 61g | 60.4g |
| Interphase Resistance | 129.3mΩ | 65mΩ |
| Dimensions | Ø33.2×39.3mm | Ø33.2×39.3mm |
| Shaft Diameter | 5mm | 5mm |
| Shaft Protruding Length | 15.5mm | 15.5mm |
| Mounting Holes | 19×19mm – Ø3mm | 19×19mm – Ø3mm |
| Lead Wires | 260mm / 18AWG | 260mm / 18AWG |
| Configuration | 12N14P | 12N14P |
| Magnet | N52H Curved | N52H Curved |
| Bearing Specs | φ11×φ5×5mm | φ11×φ5×5mm |
| Rotor | Segmented bell | Segmented bell |
| Winding | Single-strand copper | Single-strand copper |
Performance Datasheet (800KV Version)
| Prop Type | Throttle | Voltage (V) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) | Temp (°C) |
|---|---|---|---|---|---|---|---|
| HQ 9×4×3 | 100% | 23.81 | 25.63 | 2091 | 610.3 | 3.43 | 69°C |
Performance Datasheet (1250KV Version)
| Prop Type | Throttle | Voltage (V) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) | Temp (°C) |
|---|---|---|---|---|---|---|---|
| HQ 8×4×3 | 100% | 23.30 | 49.23 | 2933 | 1147.1 | 2.56 | 77°C |
(More partial throttle data available in full charts above.)
Packing List
-
1 × iFlight XING-E 2809 Brushless Motor (800KV or 1250KV)
-
4 × M3×11mm Mounting Screws
-
1 × M5 Flange Nut
Datasheet
XING-E 2809 800KV motor specs: 61g weight. 33.2×39.3mm size. 24V input. 25.63A peak current. 610.3W max power. 5mm shaft diameter. N52H magnet. 12N14P config. single-strand copper winding. Performance data for HQ props included.
XING-E 2809 1250KV motor specs: 60.4g. φ33.2*39.3mm. 24V. 49.23A peak current. 1147.1W max power. 5mm shaft. N52H magnet. 12N14P config. single-strand copper winding. Includes M3 screws and M5 nut. Performance data for HQ 8*4*3 and GF 7040 props.
