IFlight XING 1404 Unibell Motor – 3000Kv – MyFPV

Description

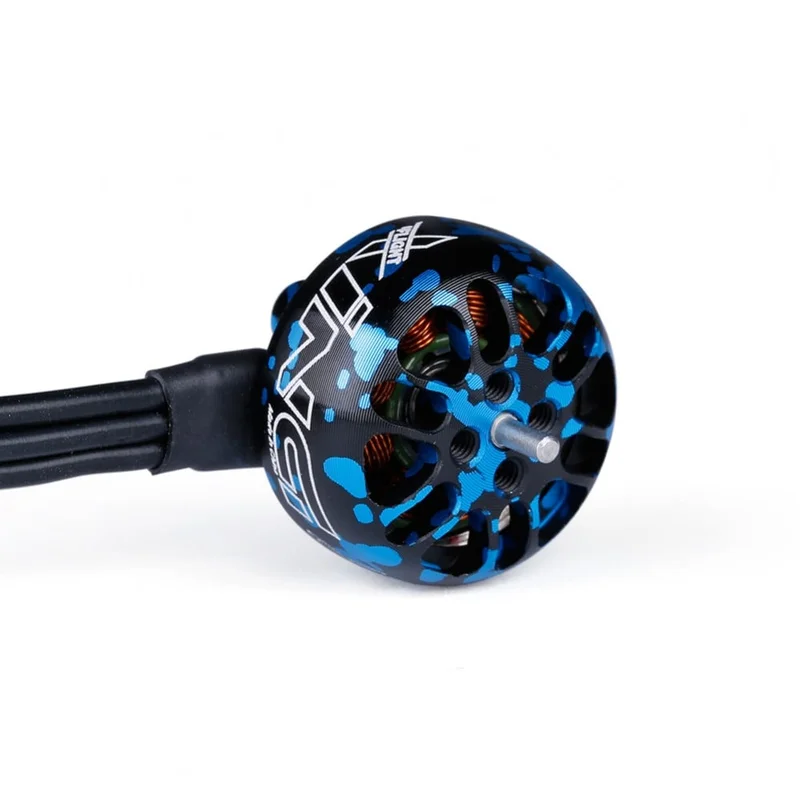

iFlight XING 1404 Unibell Motor – 3000Kv

Check out all of our iFlight Products!

The new MOTOR XING X1404 designed for ultralight toothpick builds. Super light 3″ builds like these just got much nicer since we got SucceX whoop style all in in one (AIO) with iflight new toothpick style frame you can build the ultralight microdrone.

SPECIFICATIONS

-Voltage: 2S-4S
-KV Option: 3000KV
-Configuration: 9N12P
-Stator Diameter: 14mm
-Stator Length: 4mm
-Shaft Diameter:2mm
-Motor Dimensions(Dia.*Len): 18.3×12.5mm
-No.of Cells(Lipo): 2-4S
-Max Continuous current(A): 11.8A
-Max Continuous Power(W): 174.6W
-Internal resistance: 0.28
-Weight: 8.5g(without cable)
-Mounting pattern: 9x9mm
-Bearing: 5*2*2.5mm

Package includes:
-1 x 1404 Motor Unibell
-4x M2x5 mounting screws
