Overview

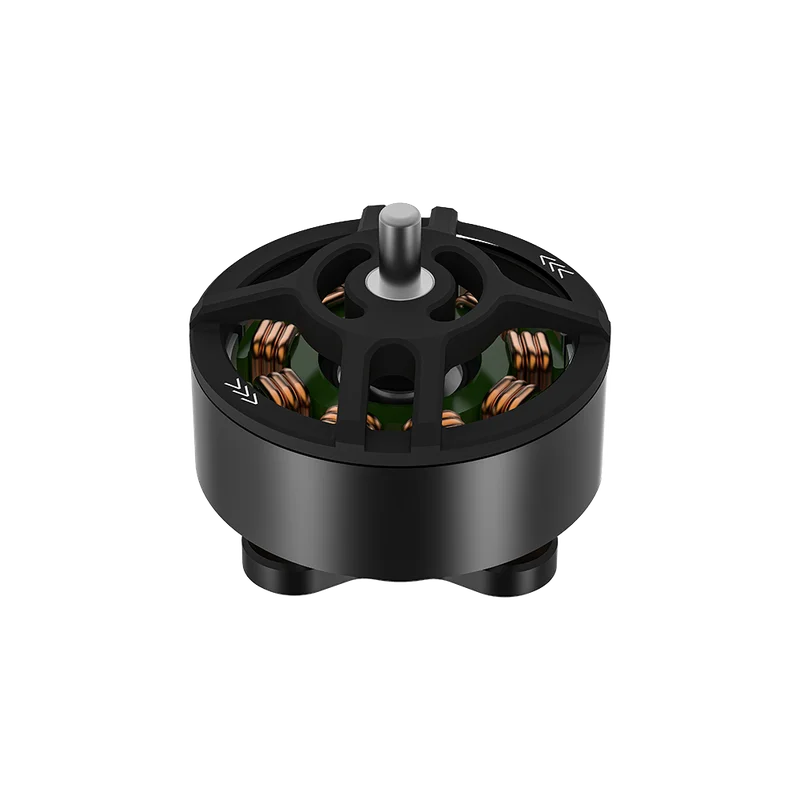

The iFlight Defender 20 1204 6200KV Motor is engineered for ultralight micro FPV drones. especially for sub-250g builds like the iFlight Defender 20. With high responsiveness and excellent power-to-weight ratio. this motor ensures agile performance in compact frames. Optimized for 2-inch propellers and 3S setups. it pairs perfectly with whoop-style AIO systems for cinematic micro quads.
Key Features
-
6200KV high-speed output for rapid throttle response
-
Compact 15.3mm diameter. lightweight at only 5.8g
-
Durable segmented bell rotor with N52H curved magnets
-
Optimized for 2-inch props like Defender 2020-3
-
Designed for ultralight 3S FPV drones / cinematic micros
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Defender 20 1204 |
| KV Rating | 6200KV |
| Weight (incl. wire) | 5.8g |
| Dimensions | Ø15.3 × 14.2mm |
| Interphase Resistance | 202mΩ |
| Input Voltage | 12V (3S recommended) |
| Peak Current | 7.85A |
| Max Power | 89.7W |
| Mounting Pattern | 9×9mm – Φ2mm (3-hole) |
| Rotor Design | Segmented bell |
| Shaft Diameter | 1.5mm |
| Shaft Length | 3mm |
| Lead Type | 60mm / 28AWG / SH1.25 3P |
| Magnet | N52H Curved |
| Configuration | 9N12P |
| Bearings | Φ5×Φ2×2.5mm (NMB) |
| Winding | Single Strand Copper Winding |
Performance (from Datasheet)
Prop: Defender 2020-3 (2 inch)
-
Thrust . All rights reserved.
