Description
Overview

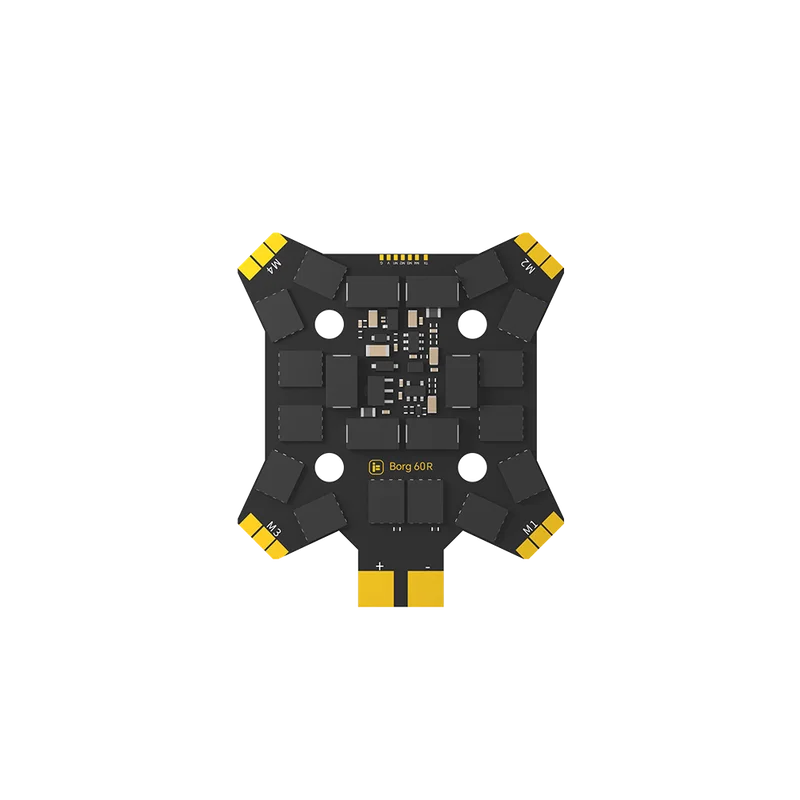

The iFlight Borg 60R ESC is a high-performance 4-in-1 electronic speed controller built for competitive FPV racing drones. As part of the next-gen Borg Series. it combines robust current handling with advanced voltage protection. ensuring stability and responsiveness under the most demanding conditions.
Equipped with an integrated anti-spark circuit and TVS transient voltage suppressor. the 60R provides double-layer protection from harmful voltage spikes. Its built-in high polymer capacitors eliminate the need for external caps on 5-inch racing drones. reducing build complexity and weight. Paired with a 6-layer 3OZ copper PCB. this ESC delivers up to 60A continuous and 65A burst current. making it ideal for high-powered FPV builds.
Key Features
-
Supports 3–8S LiPo / LIHV input. enabling powerful and flexible setups
-
60A continuous / 65A burst (10s) current capacity for racing-grade demands
-
Integrated anti-spark filter + TVS suppressor for dual overvoltage protection
-
High polymer capacitors built-in. no external caps required for 5-inch builds
-
FPC ribbon cable interface ensures clean and secure connection to FC
-
Fully compatible with BLHeli_32. Bidirectional DShot. DShot150/300/600. MultiShot. and OneShot
Specifications
| Item | Details |
|---|---|
| Product Name | Borg 60R ESC |
| Input Voltage | 3–8S LiPo / LIHV |
| Max Continuous Current | 60A |
| Max Burst Current | 65A (10 seconds) |
| MCU | STM32G071N |
| Driver | FD6288 |
| Firmware | BLHeli_32 (Target: IFLIGHT_BLITZ_G3 32.9) |
| Current Sensor | No |
| BEC | No |
| Telemetry | Supported |
| Bidirectional DShot | Supported |
| Protocols Supported | DShot150/300/600. MultiShot. OneShot |
| PCB | 6-layer. 3OZ copper |
| Dimensions | 45 × 52mm ±1 |
| Mounting Pattern | 20×20mm / Φ4mm |
| Weight | 14.5g ±1 |
Packing List
-
1 × iFlight Borg 60R ESC
-
1 × Cable Set
-
4 × Silicone Grommets
