Description

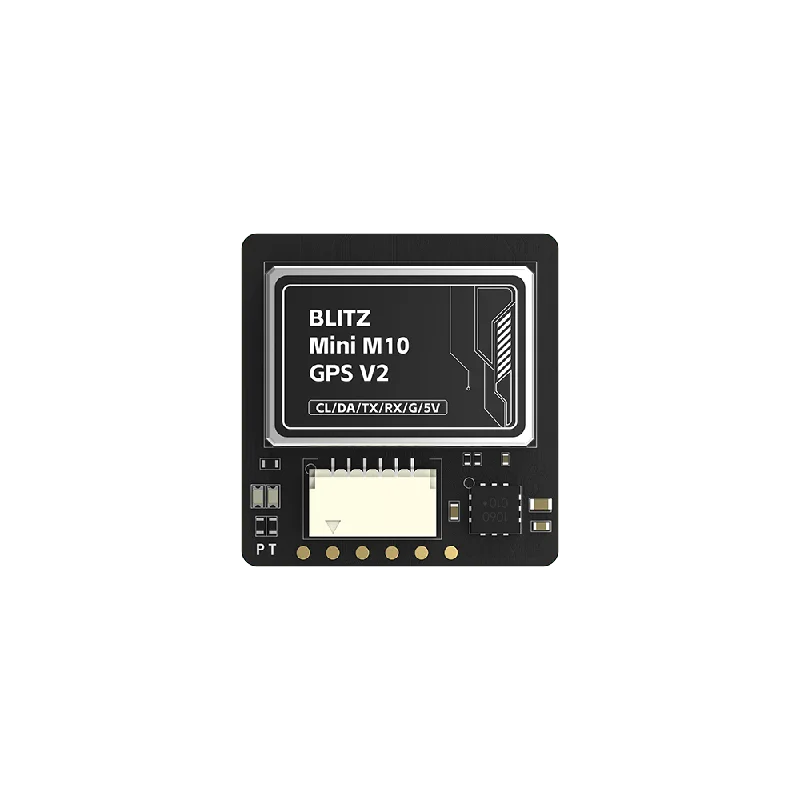

The newly upgraded BLITZ Mini M10 GPS V2 has arrived, offering faster and more stable satellite search with the 10th generation chipset. This advancement in technology provides users with a more reliable and efficient GPS experience. This GPS also has a compass built-in.
Check out our other GPS modules, as well as the rest of our iFlight Products
Features
- UBLOX M10 chip
- Compass module QMC5883L integrated
- Built-in farad capacitor for faster hot start
- 18.2×18.2mm GPS ceramic antenna, low power consumption, strong signal, lightweight.
- Onboard LNA (Low Noise Amplifier), RF filter, and TCXO (temperature-compensated crystal oscillator)
- 10 Hz Refresh rate
- Built-in Flash
Specifications
- Compass module: QMC5883L
- Baud Rate: 9600bps-460800bps (Default – 115200bps)
- Sensitivity: Tracking: -167dBm
- Cold start: 27s
- Hot start: 1s
- Maximum height: 80000m
- Maximum speed: 500 m/s
- Speed accuracy: 0.05 m/s
- Maximum acceleration: ≦ 4G
- Refresh Rate: 10 Hz
- GPS patch antenna size: 18.2 x 18.2 x 4 mm
- Total dimensions: 20 x 21 x 8 mm
- Weight: 8g
- Input Voltage: 3.3-5.5 V
- GPS pin definition: RX/TX UART
- Compass pin definition: SDA/SLA
- GNSS: GPS+SBAS+Galileo+QZSS+Glonass
Includes
- 1x iFlight Mini M10 GPS V2
- 1 x Cable set
