IFlight BLITZ Mini F7 Stack (Mini F7 V1.1 + 55A 4in1 ESC)

Description

iFlight BLITZ Mini F7 Stack (Mini F7 V1.1 + 55A 4in1 ESC)

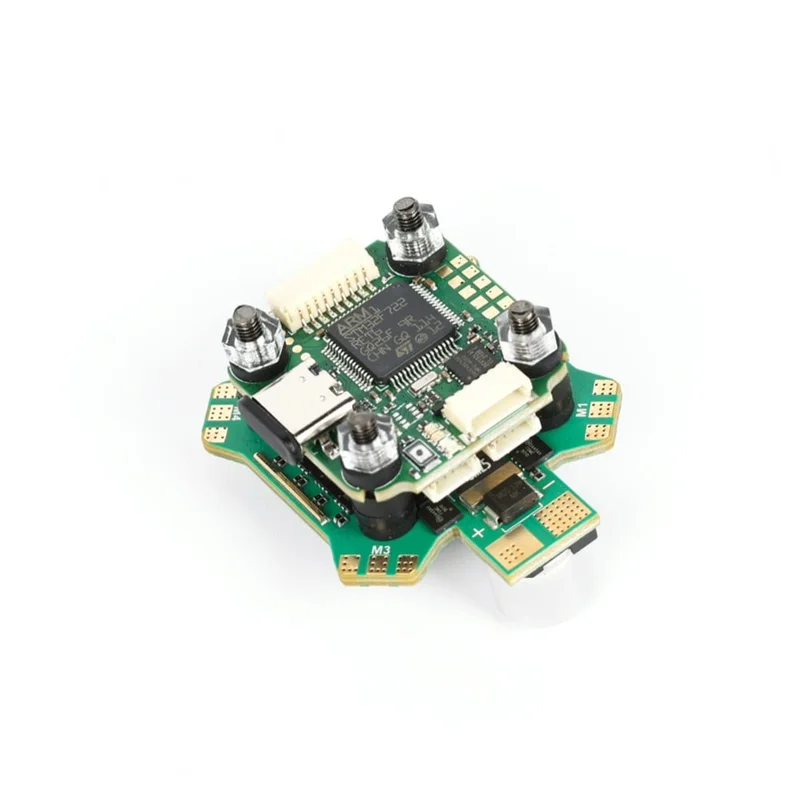

FC // BLITZ Mini F7 V1.1 Flight Controller

Top Features:

DJI HD VTX Connector (Plug-and-Play / No soldering required)
2022/Feb: Version updated to V1.1 / Gyro changed to Bosch BMI270 due to availability & price issues with MPU6000.

MCU: STM32 F722

Barometer: DPS310

Flash: 16MB (Blackbox flash)

Motor outputs: 4x (SH1.0 connector)Smartaudio / IRC Tramp VTX protocol supported

Beeper pad: Yes

Mount pattern: 20×20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws

Weight: 5g

Wiring suggestion: UART 2 for a Receiver- UART 6 for ESC Telemetry

Tips

• SBUS, CRSF, ELRS, IBUS, DSM ETC… can be connected to any unused UART_RX, we suggest you connect to Uart_RX24.
• F.port can be connected to any unused UART_TX, we suggest you connect to Uart_TX2
• Frsky SmartPort, Tramp & Smartaudio can be connected to any unused UART_TX, we suggest you connect to Uart_TX1
• F722 MCU has an inner inverter.
• – UART 3/4/5 for GPS or other sensors that require a serial port
• – UART 1 for VTX HD / Analog
• Dimensions: 30.5×27 mm
• Firmware target: IFRC-IFLIGHT_BLITZ_F722
• LED controller: Yes
• I2C serial: SDA / SLA pads
• UARTS: 6
• OSD Chip: AT7456
• Gyro: BMI270
• – FC indicator LEDs for visual debugging
• – Improved circuit design, better components and lower electrical noise!

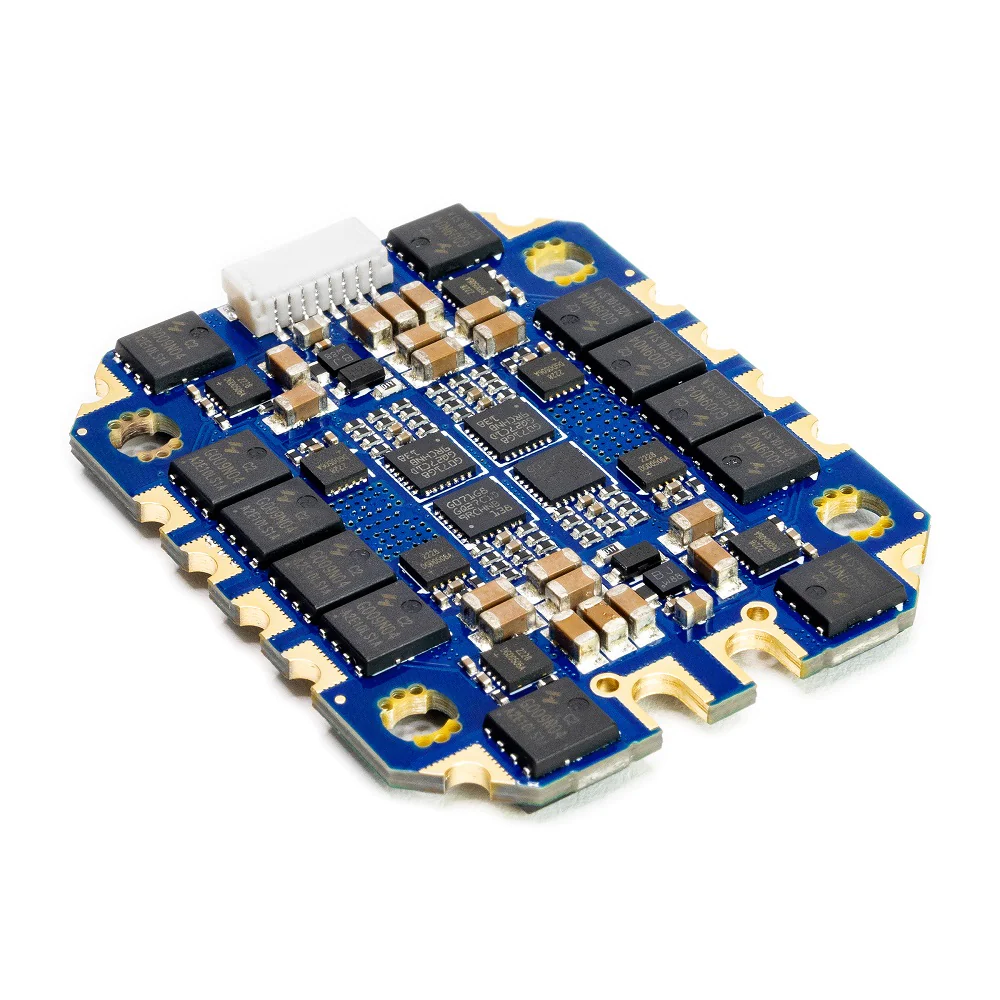

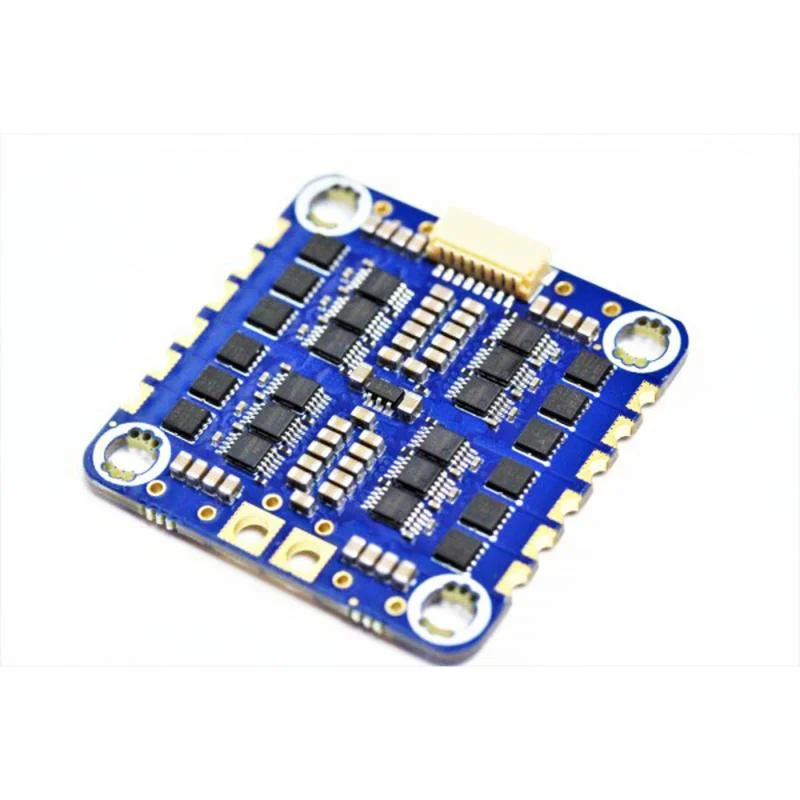

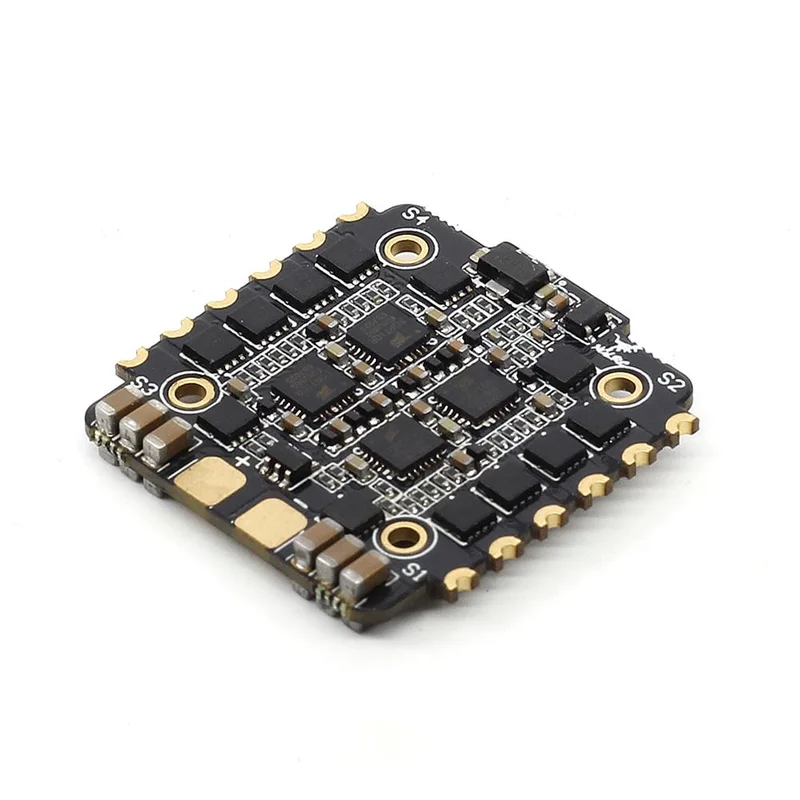

ESC // BLITZ Mini E55 4-IN-1 2-6S ESC

• Specification:
  – Mounting Holes: 20*20mm/Φ4mm- Supports 2-6S Lipo input- Constant: 55 Amps – Current sensor: Yes- Current rate: 100
  – Firmware: BLHeli 32
• – Target: IFLIGHT_BLITZ_G2
• – Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.
• – BEC: No
• – Burst: 60 Amps
• – MCU： G071
• – Weight: 11.3g
• – Dimension: 35*42mm

Package includes:

– 1pc x BLITZ Mini F7 V1.1 Flight Controller

– 1pc x BLITZ Mini E55 4-IN-1 2-6S ESC

– 1set x silicon grommets

– 1set x wire harness for F7 Flight controller
